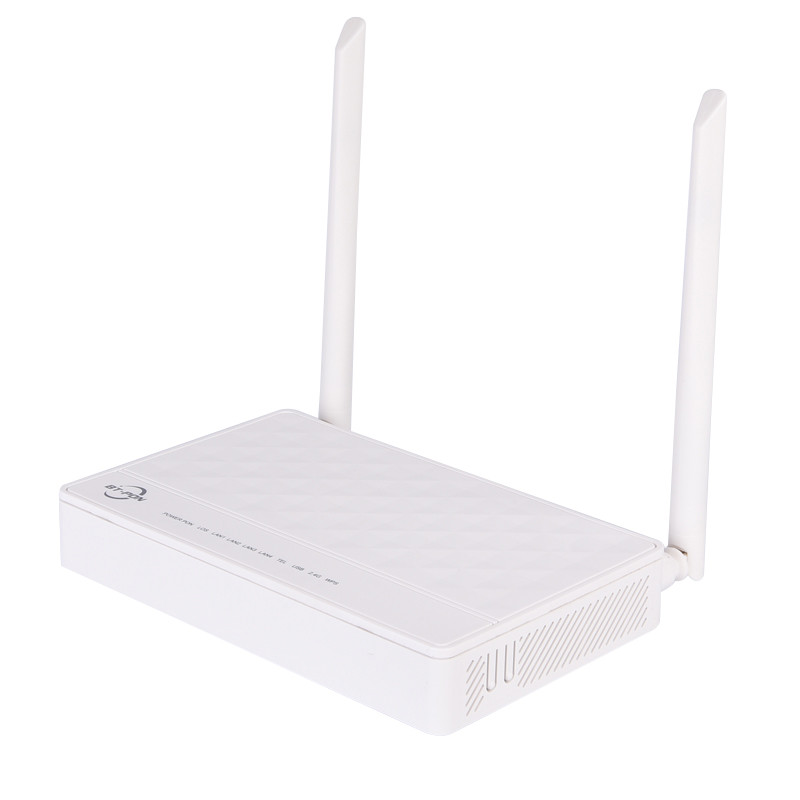

1GE 3FE VOIP 2.4G WIFI FTTH FIBER ONU XPON ONU Router

Basic Information
Place of Origin: Guangdong
Brand Name: BT-PON
Certification: CE
Model Number: BT-321XR
Minimum Order Quantity: 2
Price: Negotination
Supply Ability: 10000 Unit/Units per Month
Type: FTTx Solutions Ports: 1GE+3FE+VOIP+2.4G
Power Adapter Input: 100~240 V AC, 50/60 Hz Use: FTTH
Power Supply: 11~14 V DC, 1.5 A Pon: XPON
Wavelength: Tx1310nm/Rx1490nm Certification: ISO9001/CE/RoHS
High Light:

2.4G XPON ONU Router

,

3FE XPON ONU Router

,

3FE FIBER ONU Router

1GE+3FE+VOIP+2.4G WIFI FTTH ONU FIBER ONU XPON ONU



Product Description:

BT-321XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.



Features:

Support EPON/GPON mode and switch mode automatically
Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
Support IPv4 and IPv6 Dual mode
Support SIP Proctol for Voip Service
Support LAN IP and DHCP Server configuration
Support Port Mapping and Loop-Detect
Support Firewall function and ACL function
Support IGMP Snooping/Proxy multicast feature
Support TR069 remote configuration and maintenance
Specialized design for system breakdown prevention to maintain stable system



Product Parameter:



Technical item
Details


PON Interface
1 GPON BOB (Class B+/Class C+)
Receiving sensitivity: ≤-27dBm/≤-29dBm
Transmitting optical power: +0.5~+5dBm/+2~+7dBm
Transmission distance: 20KM
Wavelength
TX: 1310nm, RX: 1490nm
Optical Interface
SC/UPC Connector
