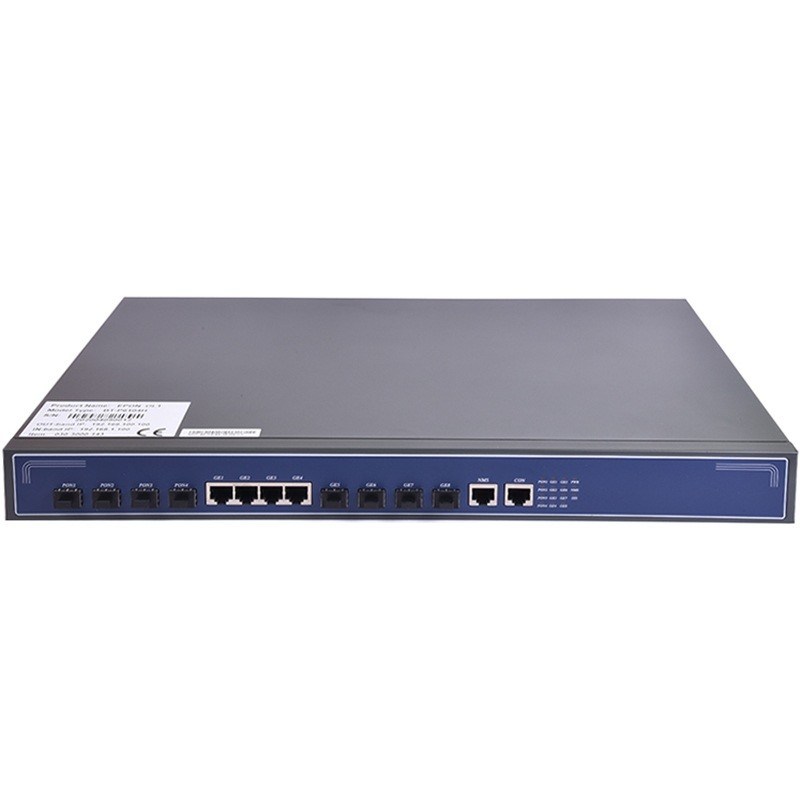

BT-PON 1U IEEE802.3ah GPON EPON 4 Port OLT

Basic Information
Place of Origin: Guangdong
Brand Name: BT-PON
Certification: CE
Model Number: BT-P6104H
Minimum Order Quantity: 10
Supply Ability: 10000 Unit/Units per Month
Type: FTTx Solutions Interface: 4SFP Slots For Uplink 10/100/1000M Auto-negotiable,RJ45:4pcs For Uplink
Management Ports: Provide 10/100Base-T RJ45 Out-band Network Management Port Use: FTTH
Power Supply: 220VAC AC: 100V~240V,50/60Hz DC:-36V~-72V Weight: 4.6 Kg
Pon: EPON Dimension: 300.0mm(L)* 440.0mm(W)* 44.45mm(H)
High Light:

IEEE802.3ah 4 Port OLT

,

1U EPON 4 Port OLT

,

BT PON 4 Port OLT

BT-PON BT-P6104H 4 PON PORT GPON OLT EPON OLT
Product Description
BT-P6104H EPON OLT is a 1U standard rack-mounted equipment complying with IEEE802.3ah, YD / T 1475-2006 and CTC 2.0,2.1 and 3.0 .It has flexible, easy to deploy, small size, high performance and other characteristics. The product is particularly suitable for residential broadband fiber access (FTTx), telephone and television "triple play", the power consumption information collection, video surveillance, networking, private network applications and other applications.
  • Supply 4 PON Port
  • Supply 4 pcs RJ45 Uplink Port
  • Supply 4 SFP slots(Combo)
  • Supporting 256 ONUs under 1:64 splitter ratio.
  • Supporting various types of management mode, such as out-band, in-band, CLI ,WEB and EMS based on development interface.
  • Typical Power 50W
Hardware Features
Business Interface

Supply 4 PON Port



4SFP slots for Uplink
10/100/1000M auto-negotiable,RJ45:4pcs for Uplink
Management Ports Provide 10/100Base-T RJ45 out-band network management port

It can manage the in-band network through any GE uplink port

Provide local configuration port



Provide 1 CONSOLE port
Data exchange 3 layer Ethernet switching, switching capacity 128Gbps, to ensure non-blocking switching
LED Light RUN,PW instructions system running,power working status
PON1 to PON4 instructions 4 pcs PON port LINK and Active status
GE1 to GE8 instructions 8 pcs GE uplink’s LINK and Active status
Power Supply 220VAC AC: 100V~240V,50/60Hz DC:-36V~-72V
Power Consumption 50W
Weight 4.6 Kg
Working Temperature 0~55℃
Dimension 300.0mm(L)* 440.0mm(W)* 44.45mm(H)
EPON Function
EPON Standard Comply with IEEE802.3ah,YD/T 1475-200 and CTC 2.0 ,2.1 and 3.0 standard

Dynamic bandwidth allocation

(DBA)

Support fixed bandwidth, guaranteed bandwidth, maximum bandwidth, priority, etc. SLA parameters;
Bandwidth granularity 64Kbps
Security Features Support PON line AES and triple churing encryption;
Support ONU MAC address binding and filtering;
VLAN Support 4095 VLAN additions, transparent transmission, conversion and deletion;
Support 4096 VLAN additions, transparent transmission, conversion and deletion;
Support VLAN Stacking (QinQ)
MAC address learning Support 32K MAC addresses;
Hardware-based wire-speed MAC address learning;
Based on port, VLAN, link aggregation MAC restrictions;
Spanning Tree Protocol Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning Tree Protocol
Multicast Support IGMP Snooping and IGMP Proxy, support CTC controllable multicast;
Support IGMP v1/v2 and v3
NTP protocol Support NTP protocol
Quality of Service(QoS) Support 802.1p priority queue scheduling;
Support SP, WRR or SP + WRR scheduling algorithm;

Access Control Lists

(ACL)

According to the destination IP, source IP, destination MAC, source MAC, destination protocol port number, source protocol port number, SVLAN, DSCP, TOS, Ethernet frame type, IP precedence, IP packets carried protocol type ACL rules set;
Support the use of the ACL rules for packet filtering;
Support Cos ACL rule using the above settings, IP priority setting, mirroring, speed limit and redirect the application;
Flow Control Support IEEE 802.3x full-duplex flow control;
Support port speed;
Link Aggregation Support 8 port aggregation group, each group supports 8 member ports
Port Mirroring Support the port mirroring of uplink interfaces and PON port
Log Support by the alarm log output level shield;
Support for logging output to the terminal, files, and log server
Alarm Support four alarm levels (severity, major, minor, and warning);
Support 6 alarm types (communication, quality of service, processing error, hardware equipment and the environment);
Support alarm output to the terminal, log and SNMP network management server
Performance Statistics Performance statistics sampling time 1 ~ 30s;
Support the 15 minutes performance statistics of uplink interfaces ,PON port and ONU user port
Administration maintenance Support OLT configuration save, support restore the factory settings;
Support OLT online upgrade;
support ONU offline service configuration and automatically configure ;
Support ONU remote upgrade and batch upgrade;
Network management Support local or remote CLI management configuration;
Support SNMP v1/v2c network management, support band, in-band network management;
Support the standard of broadcasting industry "EPON + EOC" SNMP MIB and support auto-discovery protocol EoC headend (BCMP);
Support WEB config mamagement
Open interfaces for third-party network management;



BT-PON 1U IEEE802.3ah GPON EPON 4 Port OLT 0BT-PON 1U IEEE802.3ah GPON EPON 4 Port OLT 1BT-PON 1U IEEE802.3ah GPON EPON 4 Port OLT 2BT-PON 1U IEEE802.3ah GPON EPON 4 Port OLT 3BT-PON 1U IEEE802.3ah GPON EPON 4 Port OLT 4BT-PON 1U IEEE802.3ah GPON EPON 4 Port OLT 5
Packing & Delivery
PACKING:
Original factory packing or customizedo,Or packed by standard export carton.
Shipping way:
By air, by sea or express(UPS,DHL,Fedex,TNT,EMS...)We will make a perfect delivery plan for you.
Delivery time:
1-7 days after order confirmed, exact delivery date should be decided according to production season and order quantity.
Company Introduction
Shenzhen Baitong Putian Technology Co., Ltd is a professional supplier focusing on R&D and sales, specializing in devices of telecommunications of optical access network technology especially ONU and OLT, ONU has EPON, GPON, XPON and Dual band with CATV. It provides integrated network transmission products such as voice, data, and video based on IP networks.
We have provided advanced and cost-effective advanced services such as product-oriented development and OEM & ODM for many industry brands and large-scale projects at home and abroad. While creating advanced and superior products for users, we have also created huge brand values and markets for corporate customers. In addition, we have applied the certificates of ISO9001 and CE in 2019.
The sales of products in the international market covers the rest of the world and have been widely applied in the operator networks, enterprise networks and industry projects in over 30 countries, including South America, Africa, Eastern Europe, Southeast Asia, and the Asia Pacific region.
BT-PON 1U IEEE802.3ah GPON EPON 4 Port OLT 6BT-PON 1U IEEE802.3ah GPON EPON 4 Port OLT 7BT-PON 1U IEEE802.3ah GPON EPON 4 Port OLT 8
