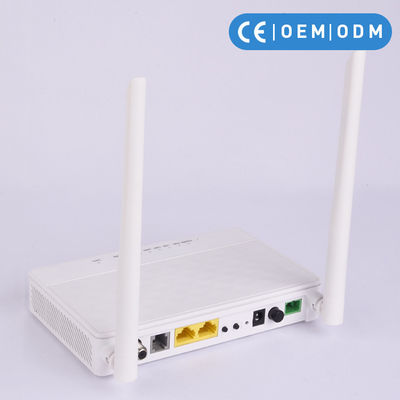

FTTX 1GE 1FE VOIP 2.4G WLAN CATV GPON ONT ONU

Basic Information
Place of Origin: Guangdong
Brand Name: BT-PON
Certification: CE
Model Number: BT-211GR
Minimum Order Quantity: 2
Price: Negotination
Supply Ability: 10000 Unit/Units per Month
Ports: 1GE+1FE+VOIP+2.4G WLAN +CATV Pon: GPON
Type: FTTx Solutions Gross Weight: 230g
Power Supply: 11~14 V DC, 1.5 A Power Adapter Input: 100~240 V AC, 50/60 Hz
Use: FTTH Package Size: 168mm*130mm*28mm
High Light:

CATV GPON ONT ONU

,

2.4G GPON ONT ONU

,

2.4G 1GE GPON ONU

onu fttx BT-211XR 1GE+1FE+VOIP+2.4G WLAN +CATV optical network unit onu GPON ONT ONU



Product Description:

BT-211XR terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. The box is based on the mature Gigabit GPON technology, which have high ratio of performance to price, and the technology of 802.11 n WiFi(2T2R), Layer 2/3, CATV and WDM. They are highly reliable and easy to maintain, with guaranteed QoS for different service.

Features:



Product Parameter:



Hardware Specifications
Size(L*W*H) 168mm (L) *130mm (W) *28mm (H)
Optical signal access 1*GPON/EPON
User interface 1GE+1FE+VOIP+2.4G WLAN +CATV
Indicator light POWER,PON,LOS,LAN1,LAN2,TEL,WIFI,WPS ,CATV
Button Power switch Button, Reset Button, WLAN Button, WPS Button
Weight 230g
Power adapter input 100V~240V AC,50Hz~60Hz
PowerSupply requirement 12V DC,1.5A
Power consumption <10w
Working temperature -10°C ~ +45°C
Environment humidity 5% ~ 95% (Non-condensing)
PON Interface
Module type Class B+ SC/APC
Working wavelength up 1310nm,down 1490nm
TX Optical power value 0.5~4dbm
RX Optical power sensitivity -28dBm
Transmission distance 0~20km
Transmission rate

GPON:Up 1.244Gbps;down 2.488Gbps

EPON:Up 1.244Gbps;down 1.244Gbps

Ethernet interface
Interface type 2* RJ45
Interface parameters 1*10/100/1000Mbps and 1*10/100Mbps
Wireless
Working mode IEEE 802.11 b/g/n
Antenna pattern External 2T2R External antenna
Antenna gain 5dBi
Wireless bandwidth Support 20MHz/40MHz
Interface rate Maximum rate 300Mbps
SSID Up to 4 SSID broadcasts are supported
POTS Interface
Interface type 1* RJ11
Voice agreement SIP
Codecs G.711/G.723/G.726/G.729
Integrated circuit protocol Gr-909 protocol is applicable
CATV Interface
Optical receiving wavelength 1550±10nm
Optical reflection loss ≥45dBm
RF, WDM, optical power +2~-15dBm
RF frequency range 47~1000MHz, RF output impedance: 75Ω
RF output level 78dBuV
AGC range 0~-12dBm
MER ≥32dB@-15dBm




RFQ:

1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.

FTTX 1GE 1FE VOIP 2.4G WLAN CATV GPON ONT ONU 0FTTX 1GE 1FE VOIP 2.4G WLAN CATV GPON ONT ONU 1FTTX 1GE 1FE VOIP 2.4G WLAN CATV GPON ONT ONU 2
