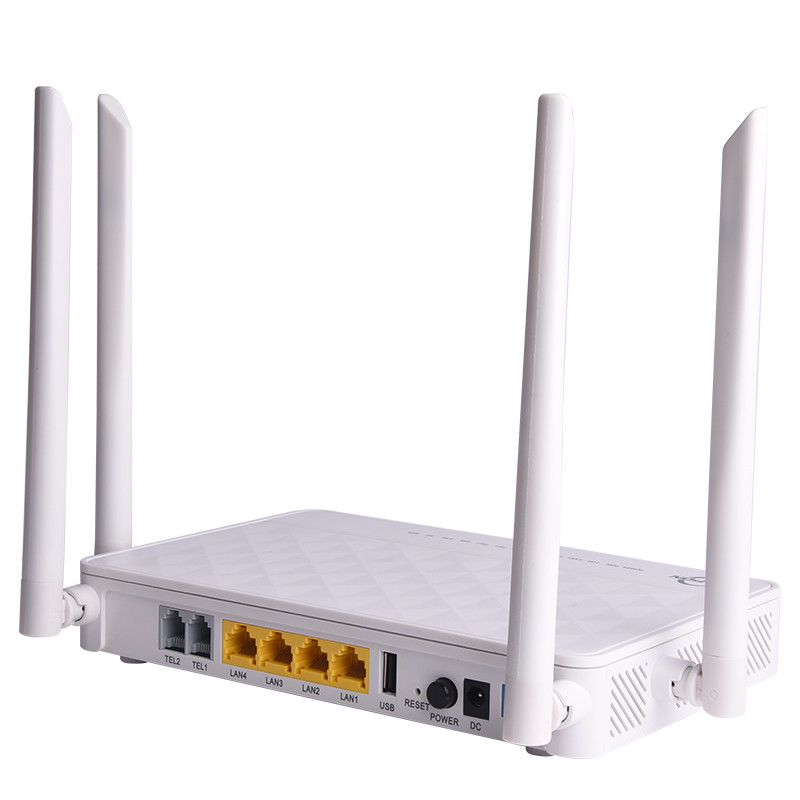

4GE 2VOIP 2.4G 5.8G WLAN 1USB XPON Fiber Optic Wireless Router

Basic Information
Place of Origin: Guangdong
Brand Name: BT-PON
Certification: CE
Model Number: BT-761XR
Minimum Order Quantity: 2
Price: Negotination
Supply Ability: 10000 Unit/Units per Month
Pon: XPON Ports: 4GE+2VOIP+2.4G/5.8G WLAN+1USB
Type: FTTx Solutions Power Adapter Input: 100~240 V AC, 50/60 Hz
Use: FTTH Gross Weight: 300g
Power Supply: 12V DC,1.5A Size: 205mm (L) *140mm (W) *30mm (H)
High Light:

5.8G 2VOIP XPON Router

,

5.8G 4GE 2VOIP XPON Router

,

5.8G 1USB 2VOIP XPON Router

FIBER OPTIC EQUIPMENT OPTIC NETWORK WIRELESS ROUTER BT-761XR 4GE+2VOIP+2.4G/5.8G WLAN+1USB XPON



Product Description:

PON is a mature optical fiber access network technology, which integrates the advantages of low cost, high bandwidth, strong expansibility and other advantages. It adopts the passive spectral network and point-to-multipoint structure.

Therefore, the BT-761XR provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucent.



Features:



Product Parameter:

Hardware Specifications
Size(L*W*H) 205mm (L) *140mm (W) *30mm (H)
Optical signal access 1*GPON/EPON
User interface 4GE+2VOIP+2.4G/5.8G WLAN+1USB
Indicator light POWER,PON,LOS,LAN1,LAN2,LAN3,LAN4,TEL1,TEL2,USB,2.4G,5G,WPS,
Button Power switch Button, Reset Button, WLAN Button, WPS Button
Weight 300g
Power adapter input 100V~240V AC,50Hz~60Hz
PowerSupply requirement 12V DC,1.5A
Power consumption <10w
Working temperature -10°C ~ +45°C
Environment humidity 5% ~ 95% (Non-condensing)
PON Interface
Module type SC/UPC
Working wavelength PON:up 1310nm,down 1490nm
TX Optical power value 0.5~4dBm
RX Optical power value -27dBm
Transmission distance 0~20km
Transmission rate

GPON:Up 1.244Gbps;down 2.488Gbps

EPON:Up 1.244Gbps;down 1.244Gbps

Ethernet interface
Interface type 4* RJ45
Interface parameters 4*10/100/1000Mbps auto adaptive Ethernet interfaces
Wireless
Working mode IEEE 802.11 b/g/n/AC
Antenna pattern External 2*2T2R External antenna
Antenna gain 5dBi
Wireless bandwidth Support 20MHz/40MHz/80MHz
Interface rate

2.4G WLAN:Maximum rate 300Mbps

5.8G WLAN:Maximum rate 866Mbps

SSID Up to 4 SSID broadcasts are supported
POTS interface
Interface type 2* RJ11
Voice agreement SIP
Codecs G.711/G.723/G.726/G.729
Integrated circuit protocol Gr-909 protocol is applicable
