HGU FTTH 4 Port Dual Band ONU Wifi Data Communication Equipment

Basic Information
Place of Origin: Guangdong
Brand Name: BT-PON
Certification: CE
Model Number: BT-716XR
Minimum Order Quantity: 100
Price: Negotiation
Supply Ability: 10000 Unit/Units per Month
Type: FTTx Solutions Power Adapter Input: 100~240 V AC, 50/60 Hz
Use: FTTH Gross Weight: 230g
Ports: 2GE+2FE+VOIP+2.4G/5G WIFI+CATV Power Supply: 11~14 V DC, 1.5 A
Pon: XPON Application: FTTH FTTB FTTX Network
High Light:

4 Port Dual Band ONU

,

FTTH Dual Band ONU

,

4 Port Gepon ONT Modem

HGU FTTH 4 Port Dual Band ONU Wifi Data Communication Equipment



Fiber Optic Hgu Ftth 4 Port Wifi Data Communication Equipment Gepon Ont Modem



2GE Onu Dual Band Router GPON Dual Band ONU



Dual Band ONU Description:

BT-716XR is realtek chipset Mini GPON Routing ONU modem designed for fulfilling FTTH ultra-broadband access request of home and SOHO users. IT suports NAT/firewall and the technology of 802.11n WiFi (2T2R) so on functions.
It complies with the energy-saving requirements of ITU-T G.9841/2/3/4 and G987.3. G984 standard PLOAM, embedded OAM and OMCI processing, support L2/L3 multicast forwarding, L2 bridging, L3 routing and NAPT business processing functions; support IPv4 and IPv6 dual stack and DS-Lite, 6RD functions; support rich and flexible Stream classification function;



Features:

Product Parameter:

Hardware Specifications
Size(L*W*H) 205mm (L) *140mm (W) *30mm (H)
Optical signal access 1*GPON/EPON
User interface 2GE+2FE+VOIP+2.4G/5G WIFI+CATV
Indicator light POWER,PON,LOS,LAN1,LAN2,LAN3,LAN4,TEL1,USB,2.4G,5G,WPS,CATV
Button Power switch Button, Reset Button, WLAN Button, WPS Button
Weight 300g
Power adapter input 100V~240V AC,50Hz~60Hz
PowerSupply requirement 12V DC,1.5A
Power consumption <10w
Working temperature -10°C ~ +45°C
Environment humidity 5% ~ 95% (Non-condensing)
PON Interface
Module type SC/APC
Working wavelength PON:up 1310nm,down 1490nm ;CATV:1550nm
TX Optical power value 0.5~4dBm
RX Optical power value Receiver sensitivity:-27dBm
Transmission distance 0~20km
Transmission rate

GPON:Up 1.244Gbps;down 2.488Gbps

EPON:Up 1.244Gbps;down 1.244Gbps

Ethernet interface
Interface type 4*RJ45
Interface parameters 4*10/100/1000Mbps auto adaptive Ethernet interfaces
Wireless
Working mode IEEE 802.11 b/g/n/ac
Antenna pattern External 2*2T2R External antenna
Antenna gain 5dBi
Wireless bandwidth Support 20MHz/40MHz/80MHz
Interface rate

2.4G WLAN:Maximum rate 300Mbps

5.8G WLAN:Maximum rate 866Mbps

SSID Up to 4 SSID broadcasts are supported
POTS interface
Interface type 1* RJ11
Voice agreement SIP
Codecs G.711/G.723/G.726/G.729
Integrated circuit protocol Gr-909 protocol is applicable
CATV Interface
Optical receiving wavelength 1550±10nm
Optical reflection loss ≥45dBm
RF, WDM, optical power +2~-15dBm
RF frequency range 47~1000MHz, RF output impedance: 75Ω
RF output level 78dBuV
AGC range 0~-12dBm
MER ≥32dB@-15dBm

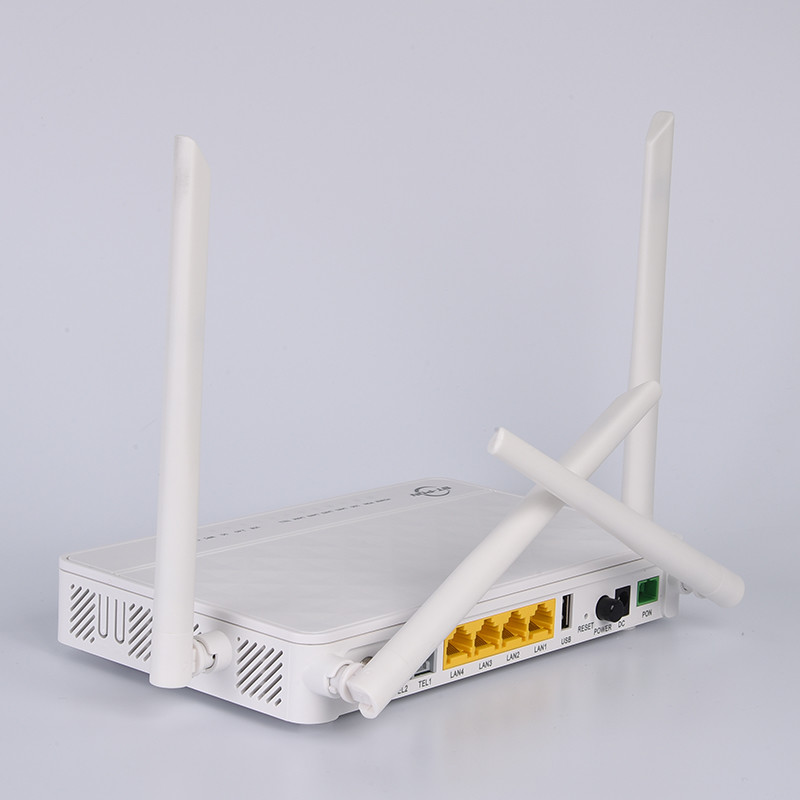

HGU FTTH 4 Port Dual Band ONU Wifi Data Communication Equipment 0HGU FTTH 4 Port Dual Band ONU Wifi Data Communication Equipment 1HGU FTTH 4 Port Dual Band ONU Wifi Data Communication Equipment 2



FAQ:

1. Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2. How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3. Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4. How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5. How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6. What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
