||1m Or Customized
||Place Of Origin:
0.9MM Fiber Optic Splitter,
STEEL TUBE PLC SPLITTER,
1*8 Fiber Optic Splitter

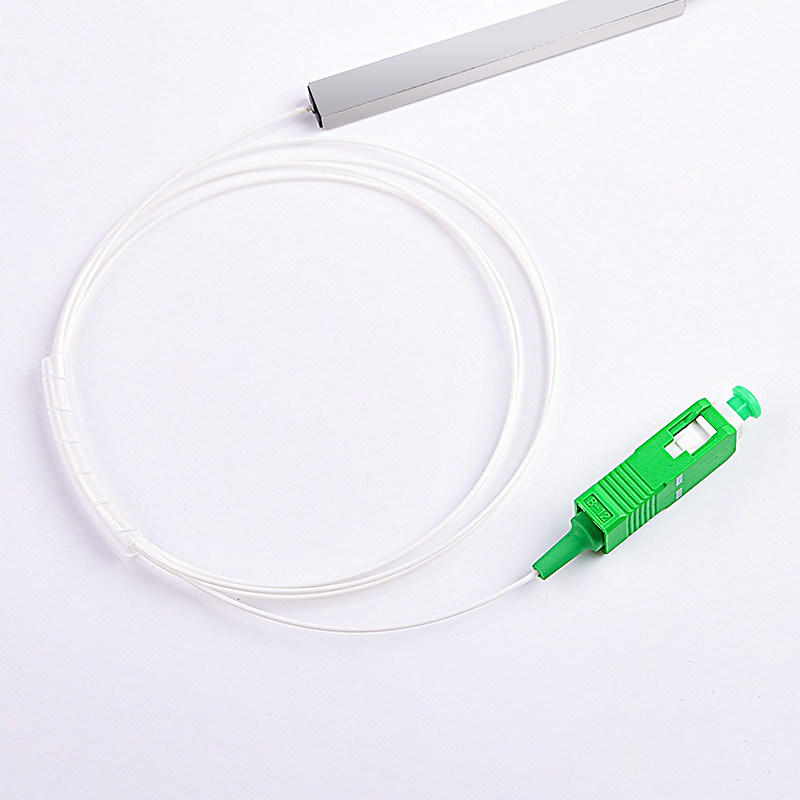

1*2 1*4 1*8 0.9MM MINI STEEL TUBE PLC SPLITTER BARE FIBER OPTICAL SPLITTER
This optical splitter use Planer Light wave Circuit (PLC) technology for split ratio 2, 4, 8,16, 32 and 64. And we produce 3 different type spliter PLC, such as micro tube, insert box type and ABS plastic box type. Optical splitter micro tube type refers to the port 0.9 mm slip-on fiber multi channel direct output with a compact design and easy to use. The insert box always be used in the fiber optic terminal box. And the ABS box type always can be used in the ODF and enclosure. All of them application for FTTX network, LAN/WAN or CATV network.
- Product Type FBT Coupler Port Configuration MxN
- Division ratio 1/99 ~ 50/50 Wavelength 1310/1490 / 1550nm
- Type of Class P Fiber Length 0.5 m / 1.0 m / 1.5 m
- Connector Type Without connector Input / Output Cable 900μm / 0.9mm
- Packaging Steel pipe Return loss ≥55dB
- Operating temperature -40 ° C ~ + 85 ° C Storage temperature
- Excellent Mechanical,Small Size
- High Reliability
- Low insertion Loss and low Polarization Dependent loss
- High channel counts
- Excellent Environmental Stability and Widely Used
|Operating Wavelength (nm)
||1260 ~ 1650
|Insertion Loss (dB) Max. *
|Uniformity (dB) Max.*
|Directivity (dB) Min *
|Return Loss (dB) Min *
|Operating Temperature (°C)
|Storage Temperature (°C)
||-40 ~ +85
||1m or custom length
||Corning SMF-28e fiber
|Power Handling (mW)
1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
