||1*10/100BASE-T Out-band Port, 1*CONSOLE Port
||Supply 8 PON Port

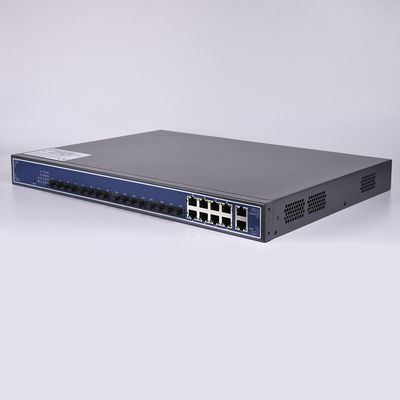

FTTH 8 Port GPON OLT,
8 Port GPON OLT,
8 Port FTTH GEPON OLT
GEPON GPON DUAL POWER FTTH FTTX 8 PORT OLT COMPATIBLE WITH HUAWEI ZTE BDCOM
1U 8port EPON OLT which provides 8 downlink 1000M PON ports, 8 uplink GE ports ,4 uplink 10GE ports by IH Fiber.
The height is only 1U for easy installation and space saving. Each PON supports up to 64 terminals, the whole device supports up to 512 ONUs under full configuration.
Our Products adopts advanced technology to support SLA and DBA to keep strong function on the Ethernet and QoS features,applied for commercial and grid network digital management to provide perfect, smart, strong, advanced, professional solutions for "automatic distribution" and "electricity information collection" in the implemented project for the national grid.
- Support port-based rate limitation and bandwidth control
- Support data encryption, multi-cast, port VLAN, separation, RSTP, etc
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto-discovery/link detection/remote upgrade of software
- Support ONT automatically discovery, auto configuration
- Support ONT firmware can be auto upgraded, download ONT firmware to OLT from web/tftp/ftp
- Support SNMP, telnet, CLI, OMCI/OAM and Web management
- Support power-off alarm function, easy for link problem detection
- Support broadcasting storm resistance function
- Firewall function
- Support remote software upgrade

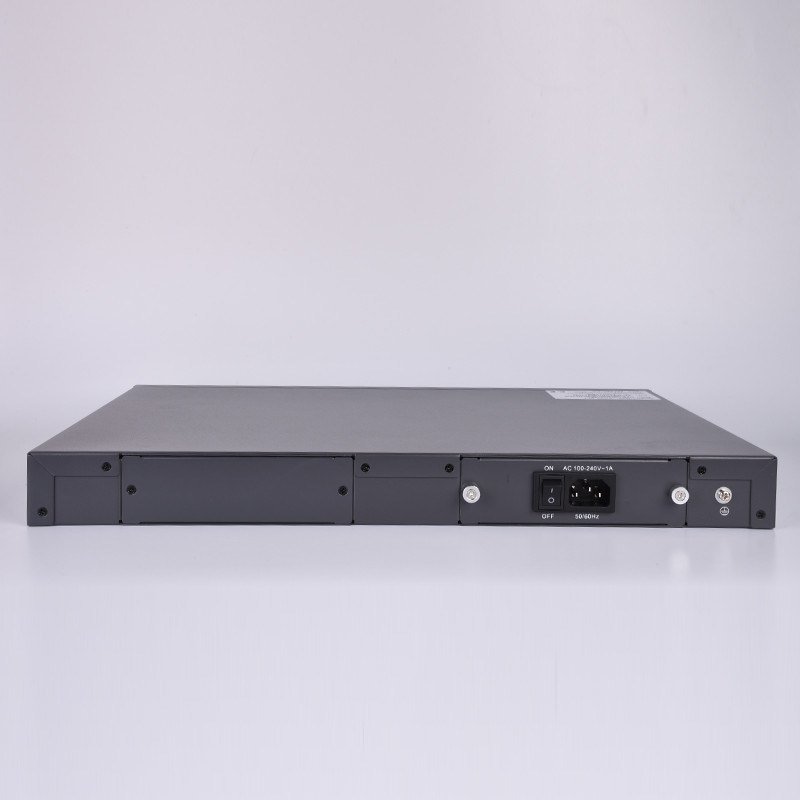

- Two power supply redundancy design
- 1U 19 inch standard box GPON OLT with 8 PON ports
- Compliant with ITU-T G984/G.988 standards and China Telecom GPON Technical Requirements
- L3 function, support static route, ARP proxy, hardware Host Routes, hardware Subnet Routes
- Tcont DBA, Gemport traffic
- QoS based on port, VID, TOS and MAC address(16K Mac address)
- Support VLAN tag/Un-tag, VLAN transparent transmission, QinQ
- Support IGMP snooping, IGMP Proxy
- Specialized design for system breakdown prevention to maintain stable system
||GPON ITU-T G.984.x
||8*GPON SFP Ports (Class C+), Receiving sensitivity: ≤-30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +3～+7dBmTransmission distance: 20KM. Max splitting ratio1:128
||Tx1310, Rx 1490
||8*copper Ethernet ports 10/100/1000M auto-negotiation
||2* SFP+ (10GE)
||Support static route, ARP proxy, hardware Host Routes, hardware Subnet Routes
||1*10/100BASE-T out-band port, 1*CONSOLE port
||Operating temp: -5 ~ +55
||Storing temp: -40 ~ +85
1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
