|Power Adapter Input:
||100~240 V AC, 50/60 Hz
||90mm (L) ×90mm (W) ×24mm (H)
FTTH 1GE GPON ONU,
BOSA 1GE GPON ONU,
Single Port GEPON ONT
PON is a mature optical fiber access network technology, which integrates the advantages of low cost, high bandwidth, strong expansibility and other advantages. It adopts the passive spectral network and point-to-multipoint structure, which changes the problems existing in the active optical network such as many fault points, difficult maintenance and high operating costs.

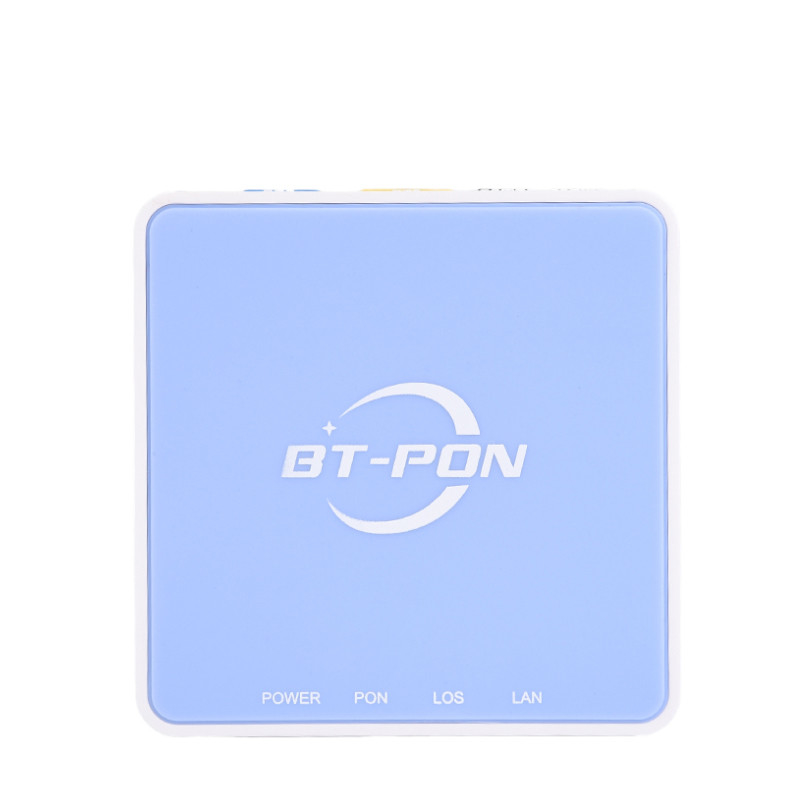

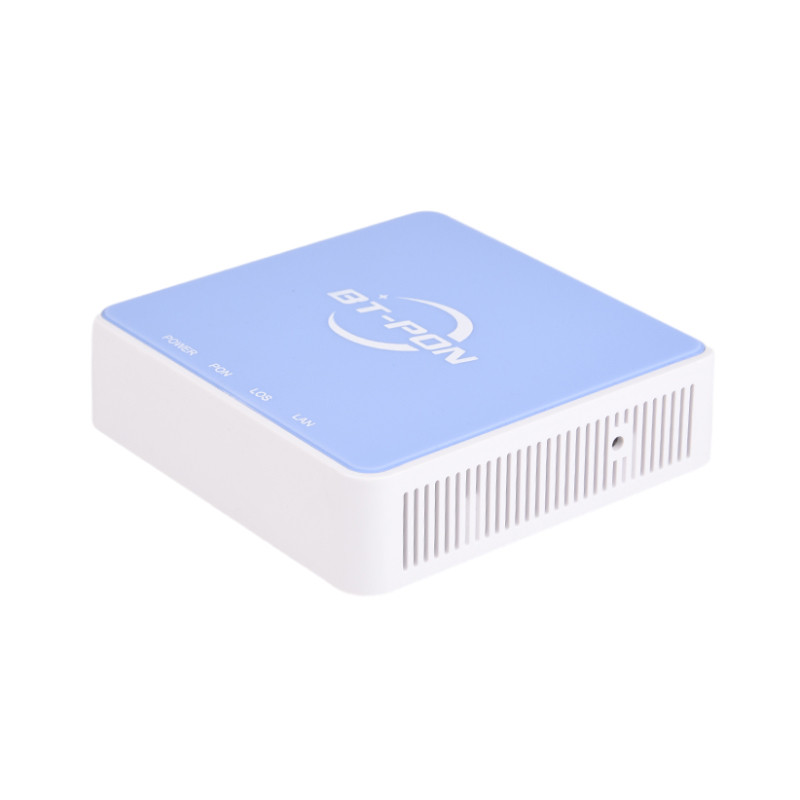

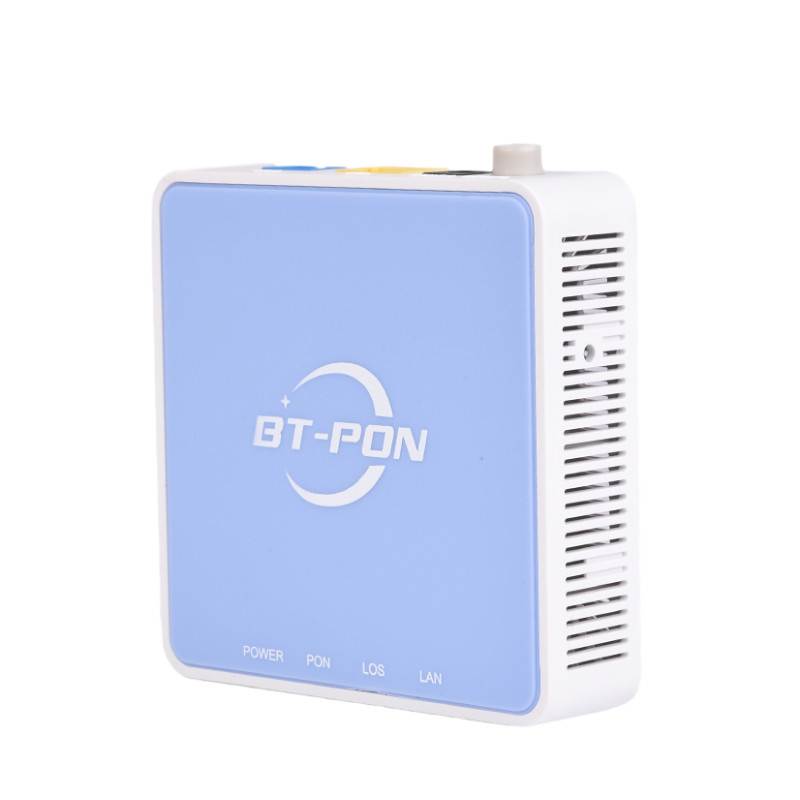

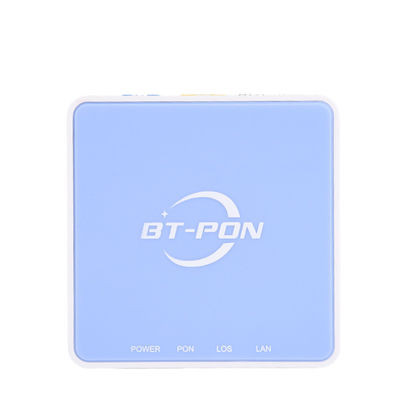

BT-125G model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function . With compact structure and small appearance, it is a kind of FTTH GPON optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.
- Compliance with IEEE 802.3ah & itu-t g.984.x standard
- GPON:8 T-CONTs,32 GEM Ports
- Supports the WEB configuration function
- Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
- Supports the configuration of Ethernet interface rates, working modes,MDI/ MDIX auto-negotiation mode, and Pause flow control
- Provides performance statistics on all Ethernet lines
- Support multicast IGMP snooping
- Supports the L2 wire speed forwarding
- Supports the AES-128 algorithm for data encryption of downlink data
||90mm (L) ×90mm (W) ×24mm (H)
|Optical signal access
||Power switch Button, Reset Button
|Power adapter input
||-10°C ~ +45°C
||5% ~ 95% (Non-condensing)
||Class B+ SC/UPC
||up 1310nm,down 1490nm
|TX Optical power value
|RX Optical power sensitivity
||Uplink 1.244Gbps；downlink 2.488Gbps
||1 x 10/100/1000Mbps auto adaptive Ethernet interfaces
* BT-125G is designed as HGU (Home Gateway Unit) in deferent FTTH solutions,The carrier-class FTTH application provides data service access.
* BT-125G is based on mature and stable, cost-effective XPON technology. Itcan switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
