||1GE+1FE+VOIP+2.4G WLAN +CATV
||11~14 V DC, 1.5 A
||Power Adapter Input:
||100~240 V AC, 50/60 Hz
VOIP 2.4G FTTH EPON ONU Equipment,
2.4G FTTH ONU Equipment,
1GE 2.4G FTTH ONU Equipment

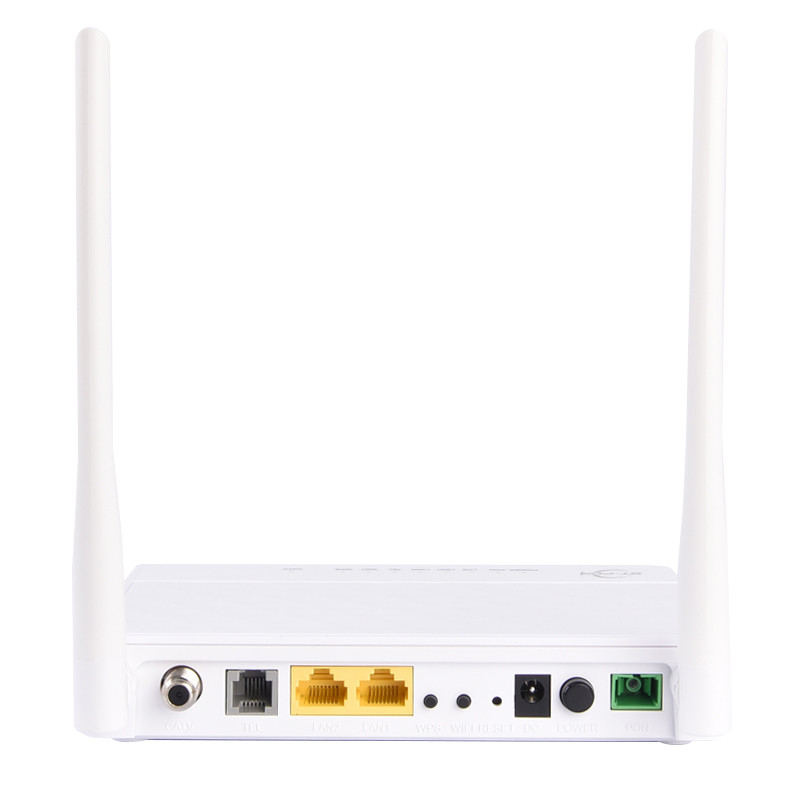

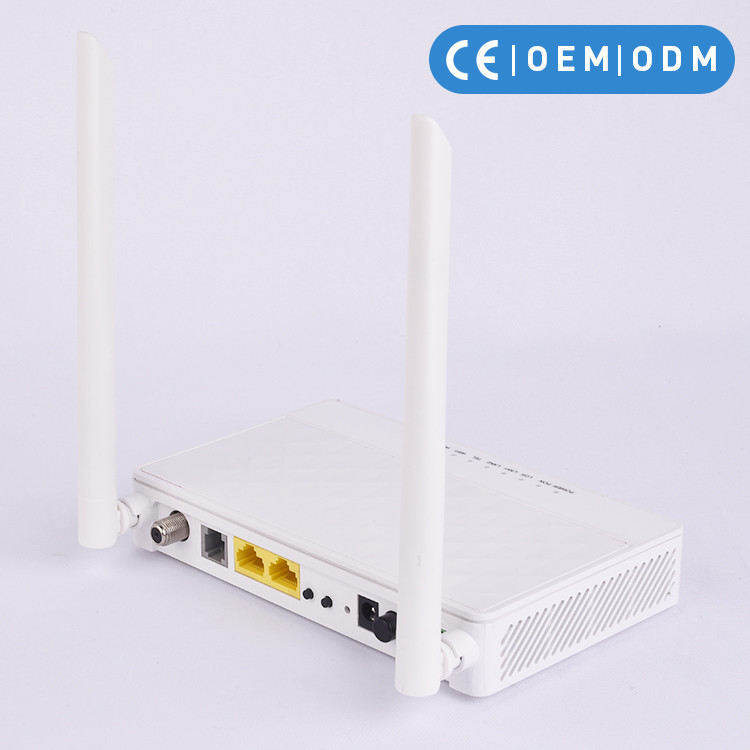

ONU EPON BT-211XR 1GE+1FE+VOIP+2.4G WLAN +CATV WITH FTTH ONU EQUIPMENT ONU
BT-211XR terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. The box is based on the mature Gigabit GPON technology, which have high ratio of performance to price, and the technology of 802.11 n WiFi(2T2R), Layer 2/3, CATV and WDM.
- Support EPON/GPON mode and switch mode automatically
- GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
- GPON:8 T-CONTs,32 GEM Ports
- Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
- Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
- Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
- Support PPPoE/ Static IP/ DHCP
- Support IPv4, IPv6 and IPv4/IPv6
- Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
- Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
- Qos supports PQ, WRR, and CAR queue scheduling
- Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
- Support DDSN, ALG, DMZ and UPNP
- Provide POTS interface, support SIP protocol,POTS integrated circuit test complies GR-909
- Support CATV interface for Video Service
||168mm (L) *130mm (W) *28mm (H)
|Optical signal access

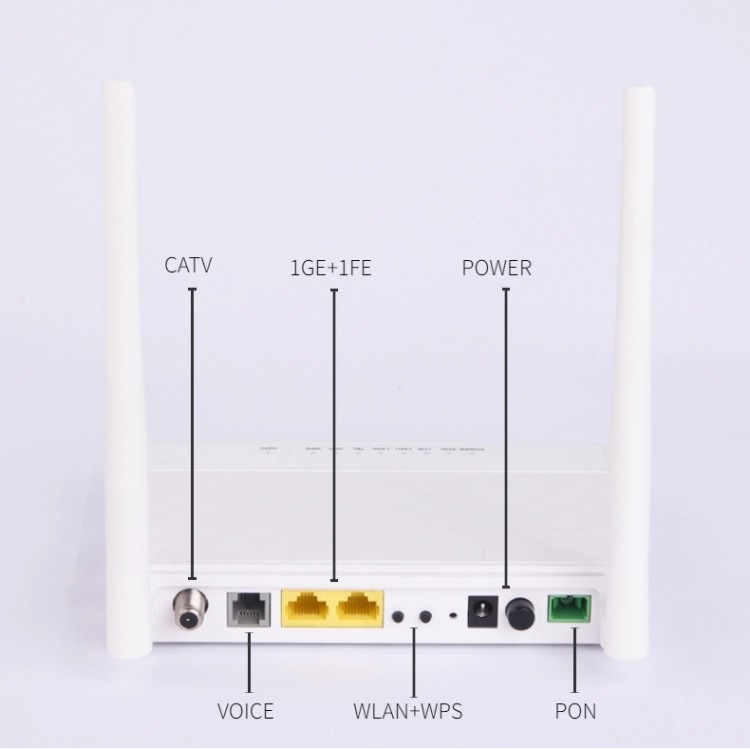

||1GE+1FE+VOIP+2.4G WLAN +CATV
||Power switch Button, Reset Button, WLAN Button, WPS Button
|Power adapter input
||-10°C ~ +45°C
||5% ~ 95% (Non-condensing)
||Class B+ SC/APC
||up 1310nm,down 1490nm
|TX Optical power value
|RX Optical power sensitivity
GPON:Up 1.244Gbps；down 2.488Gbps
EPON:Up 1.244Gbps；down 1.244Gbps
||1*10/100/1000Mbps and 1*10/100Mbps
||IEEE 802.11 b/g/n
||External 2T2R External antenna
||Maximum rate 300Mbps
||Up to 4 SSID broadcasts are supported
|Integrated circuit protocol
||Gr-909 protocol is applicable
|Optical receiving wavelength
|Optical reflection loss
|RF, WDM, optical power
|RF frequency range
||47~1000MHz, RF output impedance: 75Ω
|RF output level
