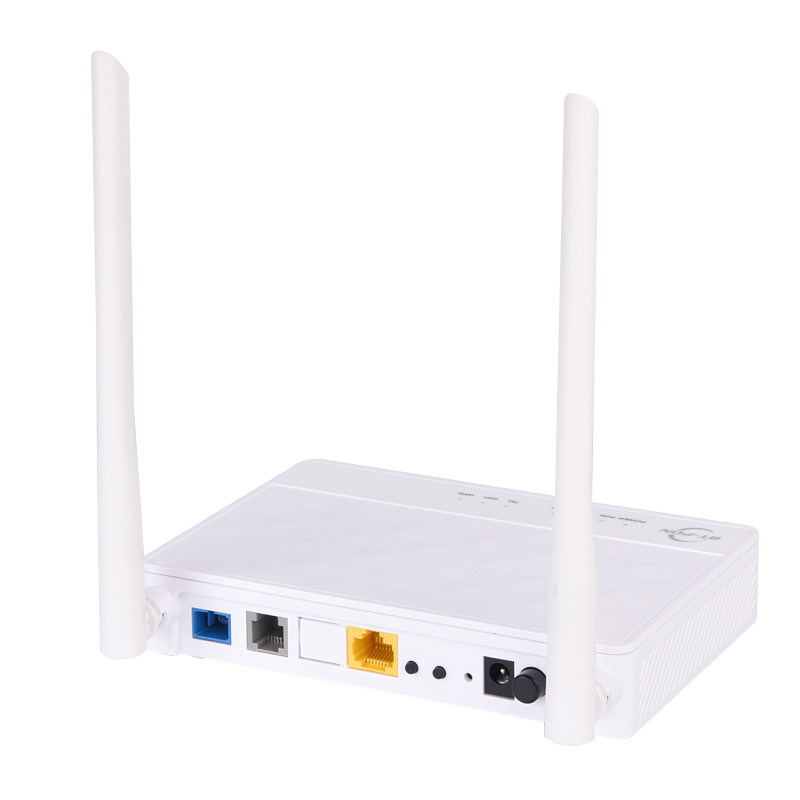

BT-225XR 1GE+VOIP+2.4G WLAN FIBER OPTIC XPON FTTH ONU MODEM ROUTER GPON XPON ONU

Basic Information
Place of Origin: Guangdong
Brand Name: BT-PON
Certification: CE
Model Number: BT-225XR
Minimum Order Quantity: 100
Price: Negotiation
Supply Ability: 10000 Unit/Units per Month
Type: FTTx Solutions Ports: 1GE+1VOIP+2.4G WIFI
Power Adapter Input: 100~240 V AC, 50/60 Hz Use: FTTH
Gross Weight: 192g Power Supply: 11~14 V DC, 1.5 A
Pon: XPON Package Size: 155mm (L) *113mm (W) *28mm (H)

BT-225XR 1GE+VOIP+2.4G WLAN FIBER OPTIC XPON FTTH ONU MODEM ROUTER GPON XPON ONU


Product Description:

BT-225XR model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.BT-225XR is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.
PON is a mature optical fiber access network technology, which integrates the advantages of low cost, high bandwidth, strong expansibility and other advantages. It adopts the passive spectral network and point-to-multipoint structure, which changes the problems existing in the active optical network such as many fault points, difficult maintenance and high operating costs.


Features:

Product Parameter:

Hardware Specifications
Size(L*W*H)155mm (L) *113mm (W) *28mm (H)
Optical signal access1*GPON/EPON
User interface1GE+VOIP+2.4G WLAN
Indicator lightPOWER,PON,LOS,LAN1,TEL,WIFI,WPS
ButtonPower switch Button, Reset Button, WLAN Button, WPS Button
Weight192g
Power adapter input100V~240V AC,50Hz~60Hz
PowerSupply requirement12V DC,1.5A
Power consumption<10w
Working temperature-10°C ~ +45°C
Environment humidity5% ~ 95% (Non-condensing)
PON Interface
Module typeClass B+ SC/UPC
Working wavelengthup 1310nm,down 1490nm
TX Optical power value0.5~4dbm
RX Optical power sensitivity-28dBm
Transmission distance0~20km
Transmission rate

GPON:Up 1.244Gbps;down 2.488Gbps

EPON:Up 1.244Gbps;down 1.244Gbps

Ethernet interface
Interface typeRJ45
Interface parameters1*10/100/1000Mbps
Wireless
Working modeIEEE 802.11 b/g/n
Antenna patternExternal 2T2R External antenna
Antenna gain5dBi
Wireless bandwidthSupport 20MHz/40MHz
Interface rateMaximum rate 300Mbps
SSIDUp to 4 SSID broadcasts are supported
POTS Interface
Interface type1* RJ11
Voice agreementSIP
CodecsG.711/G.723/G.726/G.729
Integrated circuit protocolGr-909 protocol is applicable




FAQ:

1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
