| Place of Origin: | Guangdong |
|---|---|
| Brand Name: | BT-PON |
| Certification: | CE |
| Model Number: | BT-767XR |
| Minimum Order Quantity: | 100 |
| Price: | Negotiation |
| Supply Ability: | 10000 Unit/Units per Month |
| Type: | FTTx Solutions | Ports: | 2GE+2FE+2VOIP+2.4G+5G |
|---|---|---|---|
| Power Adapter Input: | 100~240 V AC, 50/60 Hz | Use: | FTTH |
| Gross Weight: | 300g | Power Supply: | 11~14 V DC, 1.5 A |
| Pon: | XPON | Package Size: | 205mm (L) *140mm (W) *30mm (H) |
| High Light: | 2FE 2.4G WIFI XPON ONU,2GE WIFI XPON ONU,2FE 5G WIFI XPON ONU |
||

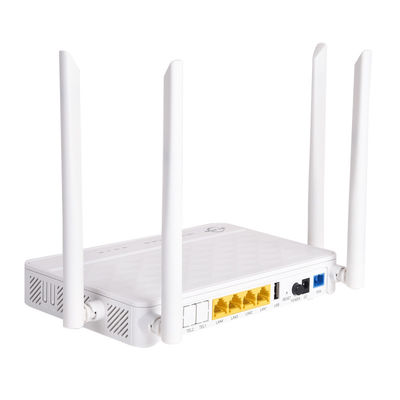

Dual Band 2.4G&5G FTTH BT-767XR 2GE+2FE+2.4G+5G WIFI ONU XPON ONU
* BT-767XR is designed as HGU (Home Gateway Unit) in different FTTH solutions.The carrier-class FTTH application provides data and video service access .
* BT-767XR is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
* BT-767XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X.
Support EPON/GPON mode and switch mode automatically
Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
Support IPv4 and IPv6
Support 4G&5.8G WIFI and Multiple SSID
Support SIP Proctol for Voip Service
Support LAN IP and DHCP Server configuration
Support Port Mapping and Loop-Detect
Support Firewall function and ACL function
Support IGMP Snooping/Proxy multicast feature
Support TR069 remote configuration and maintenance
Specialized design for system breakdown prevention to maintain stable system
| Hardware Specifications | |
| Size(L*W*H) | 205mm (L) *140mm (W) *30mm (H) |
| Optical signal access | 1*GPON/EPON |
| User interface | 2GE+2FE+2.4G/5.8G WLAN+1USB |
| Indicator light | POWER,PON,LOS,LAN1,LAN2,LAN3,LAN4,USB,2.4G,5G,WPS |
| Button | Power switch Button, Reset Button, WLAN Button, WPS Button |
| Weight | 300g |
| Power adapter input | 100V～240V AC,50Hz～60Hz |
| PowerSupply requirement | 12V DC,1.5A |
| Power consumption | <10w |
| Working temperature | -10°C ~ +45°C |
| Environment humidity | 5% ~ 95% (Non-condensing) |
| PON Interface | |
| Module type | SC/UPC |
| Working wavelength | PON:up 1310nm,down 1490nm |
| TX Optical power value | 0.5～4dBm |
| RX Optical power value | Receiver sensitivity:-27dBm |
| Transmission distance | 0～20km |
| Transmission rate |
GPON:Up 1.244Gbps；down 2.488Gbps EPON:Up 1.244Gbps；down 1.244Gbps |
| Ethernet interface | |
| Interface type | 4*RJ45 |
| Interface parameters | 4*10/100/1000Mbps auto adaptive Ethernet interfaces |
| Wireless | |
| Working mode | IEEE 802.11 b/g/n/AC |
| Antenna pattern | External 2*2T2R External antenna |
| Antenna gain | 5dBi |
| Wireless bandwidth | Support 20MHz/40MHz/80MHz |
| Interface rate |
2.4G WLAN:Maximum rate 300Mbps 5.8G WLAN:Maximum rate 866Mbps |
| SSID | Up to 4 SSID broadcasts are supported |
1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
