||Power Adapter Input:
||100~240 V AC, 50/60 Hz
||100~240 V AC, 50/60 Hz
||Class B+ SC/APC
2 Port WIFI ONT Modem,
1FE FTTX EPON ONU,
1GE WIFI ONT Modem
ONU FTTH FTTX NETWORK 2 PORT 1GE+1FE+WIFI ONT MODEM ONU NETWORK DEVICE EPON ONU

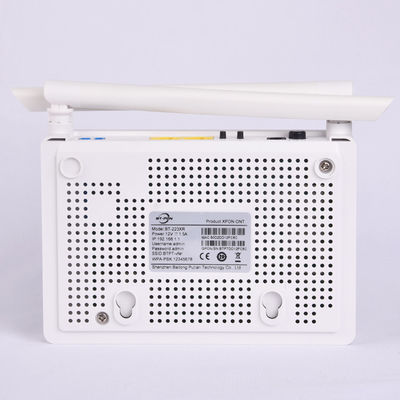

BT-223XR model ONU is a user terminal device independently developed by BTPT in line with such industrial background.With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.
2GE+WiFi GPON/EPON HGU terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators. These boxes are based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, and high quality VoIP as well.
- Support EPON/GPON mode and switch mode automatically
- GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
- GPON:8 T-CONTs,32 GEM Ports
- Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
- Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
- Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
- Support PPPoE/ Static IP/ DHCP
- Support IPv4, IPv6 and IPv4/IPv6
- Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
- Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
- Qos supports PQ, WRR, and CAR queue scheduling
- Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
- Support DDSN, ALG, DMZ and UPNP
||155mm (L) *113mm (W) *28mm (H)
|Optical signal access
||Power switch Button, Reset Button, WLAN Button, WPS Button
|Power adapter input
||-10°C ~ +45°C
||5% ~ 95% (Non-condensing)
||Class B+ SC/UPC
||up 1310nm,down 1490nm
|TX Optical power value
|RX Optical power sensitivity
GPON:Up 1.244Gbps；down 2.488Gbps
EPON:Up 1.244Gbps；down 1.244Gbps
||1*10/100/1000Mbps and 1*10/100Mbps
||IEEE 802.11 b/g/n
||External 2T2R External antenna
||Maximum rate 300Mbps
||Up to 4 SSID broadcasts are supported
1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
