||Power Adapter Input:
||100~240 V AC, 50/60 Hz
||100~240 V AC, 50/60 Hz
||Class B+ SC/APC
1GE WIFI Ont Modem,
2 Port WIFI Ont Modem,
1FE WIFI Ont Modem

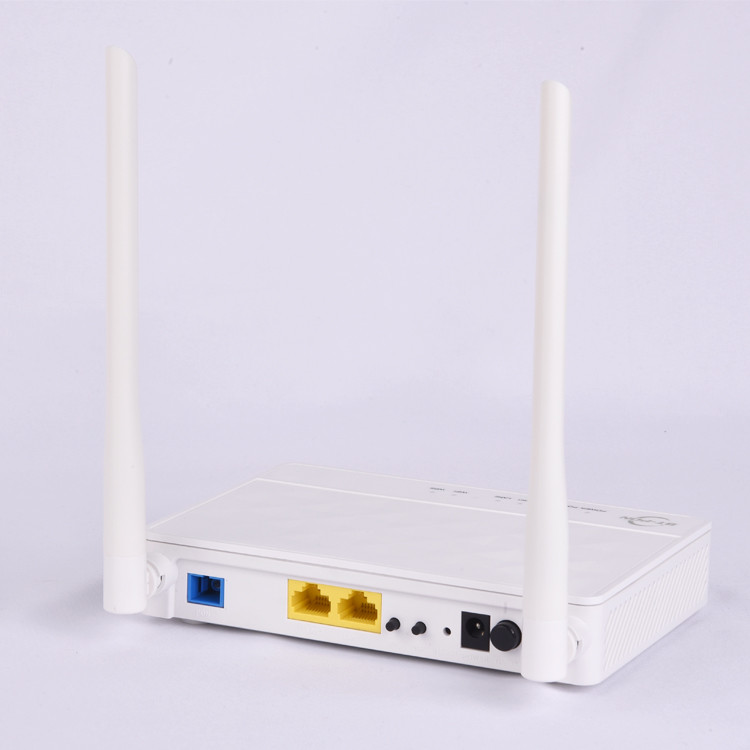

onu cabinet gepon onu FTTX network 2 Port 1GE+1FE+WIFI Ont Modem XPON ONU
BT-223XR model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.BT-223XR is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.
2GE+WiFi GPON/EPON HGU terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators. These boxes are based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, and high quality VoIP as well.
- Support EPON/GPON mode and switch mode automatically
- GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
- GPON:8 T-CONTs,32 GEM Ports
- Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
- Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
- Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
- Support PPPoE/ Static IP/ DHCP
- Support IPv4, IPv6 and IPv4/IPv6
- Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
- Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
- Qos supports PQ, WRR, and CAR queue scheduling
- Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
- Support DDSN, ALG, DMZ and UPNP
||155mm (L) *113mm (W) *28mm (H)
|Optical signal access
||Power switch Button, Reset Button, WLAN Button, WPS Button
|Power adapter input
||-10°C ~ +45°C
||5% ~ 95% (Non-condensing)
||Class B+ SC/UPC
||up 1310nm,down 1490nm
|TX Optical power value
|RX Optical power sensitivity
GPON:Up 1.244Gbps；down 2.488Gbps
EPON:Up 1.244Gbps；down 1.244Gbps
||1*10/100/1000Mbps and 1*10/100Mbps
||IEEE 802.11 b/g/n
||External 2T2R External antenna
||Maximum rate 300Mbps
||Up to 4 SSID broadcasts are supported
