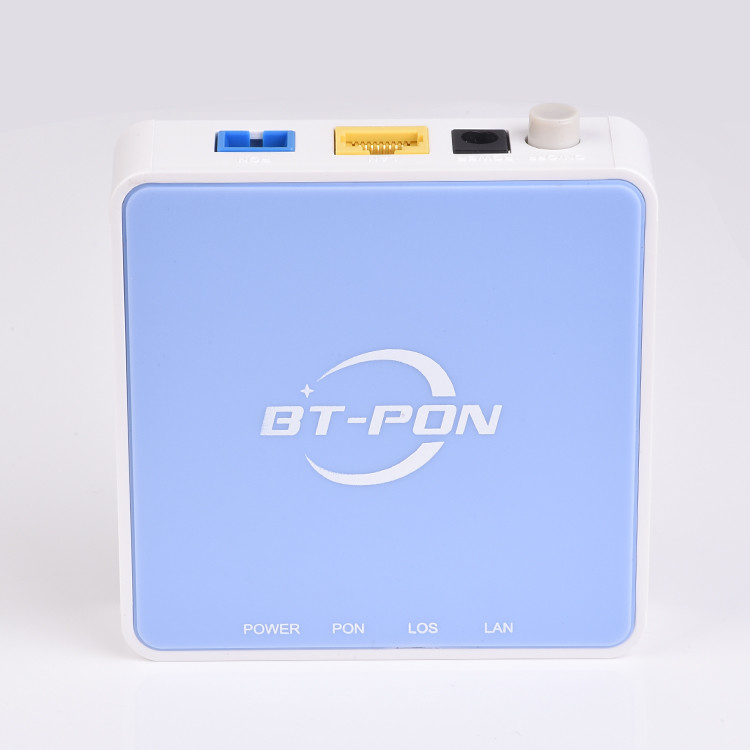

1GE FTTH Bridge Fiber Optic Modem GPON EPON ONU

Basic Information
Place of Origin: Guangdong
Brand Name: BT-PON
Certification: CE
Model Number: BT-121XR
Minimum Order Quantity: 100
Price: Negotiation
Supply Ability: 10000 Unit/Units per Month
Power Adapter Input: 100~240 V AC, 50/60 Hz Gross Weight: 95g
Pon: EPON Use: FTTH
Type: FTTx Solutions Ports: 1GE
Power Supply: 12V DC,0.5A Package Size: 90mm (L) ×90mm (W) ×24mm (H)
High Light:

FTTH GPON EPON ONU

,

Bridge Fiber Optic Modem

,

1GE GPON EPON ONU

1GE FIBER MODEM GPON EPON ONU FOR FTTH BT-121XR BRIDGE FIBER OPTIC MODEM

Product Description:

BT-121ER is a new XPON ONU production of Thinktides Technology which passive optical network terminal series. It provides one 10/100/1000Mbps base-T interface, one optical interface, and it is very impact. Suitable for home and small business users, can meet the FTTH high-speed data transmission of the application.

Features:

  • Support multicast IGMP snooping
  • Supports the L2 wire speed forwarding
  • Supports the AES-128 algorithm for data encryption of downlink data
  • Compliant with IEEE 802.3ah specification and OAM protocol
  • Supports the WEB configuration function
  • Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
  • Supports the configuration of Ethernet interface rates, working modes,MDI/ MDIX auto-negotiation mode, and Pause flow control
  • Provides performance statistics on all Ethernet lines


EPON 1GE ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a EPON Gigabit Ethernet products. It can also be applied to a wide temperature environment, and also has a powerful firewall function. The box is based on the mature Gigabit EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.



Product Parameter:

Hardware Specifications
Size(L*W*H) 90mm (L) ×90mm (W) ×24mm (H)
Optical signal access 1*EPON
User interface 1GE
Indicator light POWER/PON/LOS/LAN
Button Power switch Button, Reset Button
Weight 95g
Power adapter input 100V~240V AC,50Hz~60Hz
PowerSupply requirement 12V DC,0.5A
Power consumption <6w
Working temperature -10°C ~ +45°C
Environment humidity 5% ~ 95% (Non-condensing)
PON Interface
Module type SC/UPC
Working wavelength up 1310nm,down 1490nm
TX Optical power value 0.5~4dBm
RX Optical power sensitivity -27dBm
Transmission distance 0~20km
Transmission rate Uplink 1.244Gbps;downlink 1.244Gbps
Ethernet interface
Interface type RJ45
Interface parameters 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces
