| Place of Origin: | Guangdong |
|---|---|
| Brand Name: | BT-PON |
| Certification: | CE |
| Model Number: | BT-201ER |
| Minimum Order Quantity: | 100 |
| Price: | Negotiation |
| Supply Ability: | 10000 Unit/Units per Month |
| Power Adapter Input: | 100~240 V AC, 50/60 Hz | Ports: | 1GE |
|---|---|---|---|
| Indicator Light: | POWER/PON/LOS/LAN | Weight: | 100g |
| Type: | FTTx Solutions | Power Consumption: | <6w |
| Module Type: | Class B+ SC/UPC | Warranty: | 1 Year |
| High Light: | 3FE 1GE EPON ONU,1GE EPON ONU Modem,3FE EPON ONU Modem |
||
FIBER ONT ONU 1*10/ 100/1000MBPS FTTH EPON 1GE WIFI ONU
PON is a mature optical fiber access network technology, which integrates the advantages of low cost, high bandwidth, strong expansibility and other advantages. It adopts the passive spectral network and point-to-multipoint structure, which changes the problems existing in the active optical network such as many fault points, difficult maintenance and high operating costs.

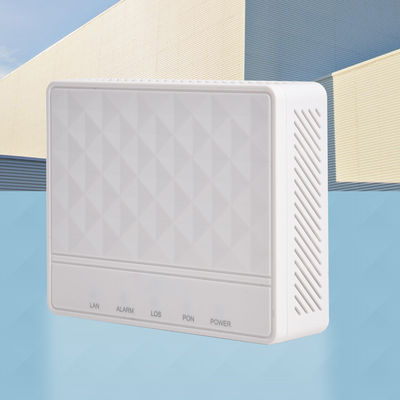

BT-201ER model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function . With compact structure and small appearance, it is a kind of FTTH EPON optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.
| Hardware Specifications | |
| Size(L*W*H) | 110mm (L) ×89mm (W) ×29mm (H) |
| Optical signal access | 1*EPON |
| User interface | 1GE |
| Indicator light | POWER/PON/LOS/LAN |
| Button | Power switch Button, Reset Button |
| Weight | 100g |
| Power adapter input | 100V～240V AC,50Hz～60Hz |
| PowerSupply requirement | 12V DC,0.5A |
| Power consumption | <6w |
| Working temperature | -10°C ~ +45°C |
| Environment humidity | 5% ~ 95% (Non-condensing) |
| PON Interface | |
| Module type | EPON SC/UPC |
| Working wavelength | up 1310nm,down 1490nm |
| TX Optical power value | 0.5～4dbm |
| RX Optical power sensitivity | -27dBm |
| Transmission distance | 0～20km |
| Transmission rate | Uplink 1.244Gbps；downlink 1.244Gbps |
| Ethernet interface | |
| Interface type | RJ45 |
| Interface parameters | 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces |
EPON technology is a kind of emerging technology which takes advantage of PON technology and Ethernet technology also is a kind of point to multi-point network technology. OLT through the passive optical network to connect multiple ONU with single fiber bidirectional technical can rarely used fiber resources to meet the operators of the multi-user access requirements.
1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7
workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
