|Power Adapter Input:
||100~240 V AC, 50/60 Hz
||205mm (L) *140mm (W) *30mm (H)
5G Fiber Optic Network Router,
2.4G FTTH GPON Router,
GPON Fiber Optic Network Router

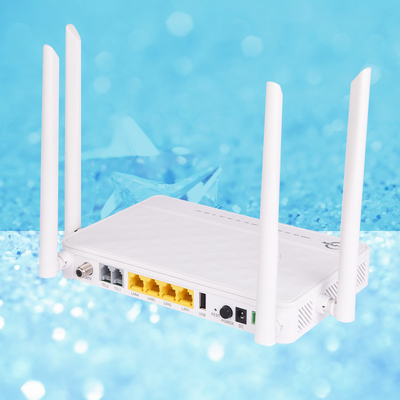

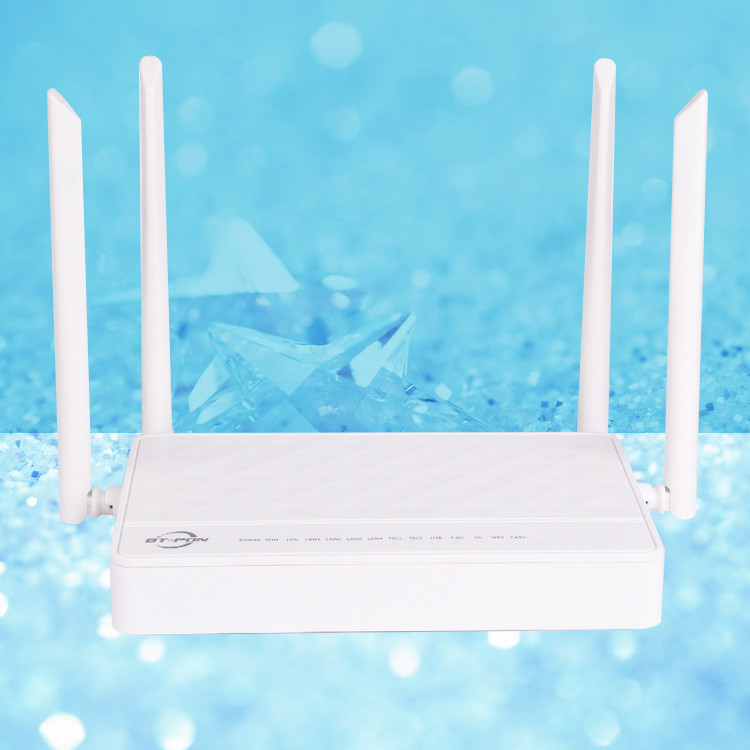

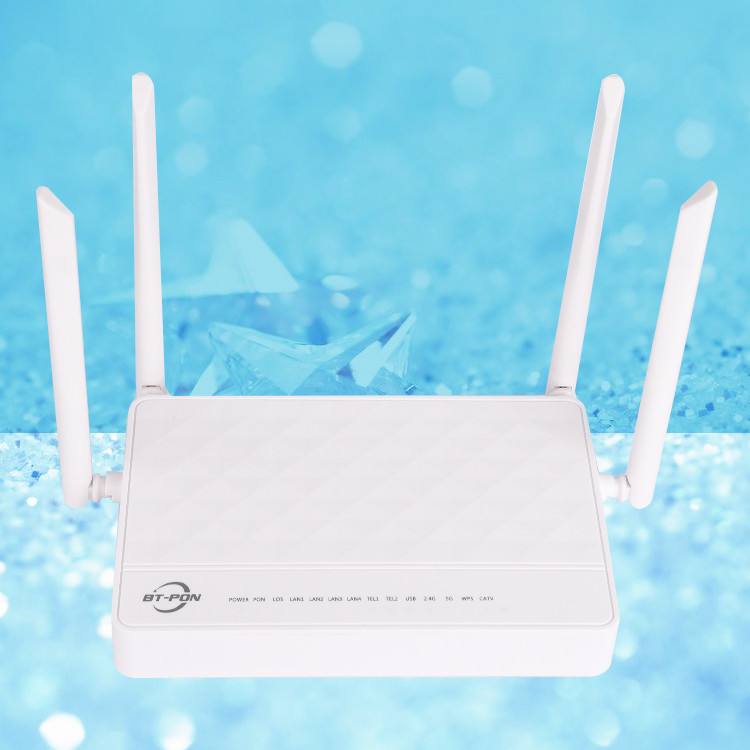

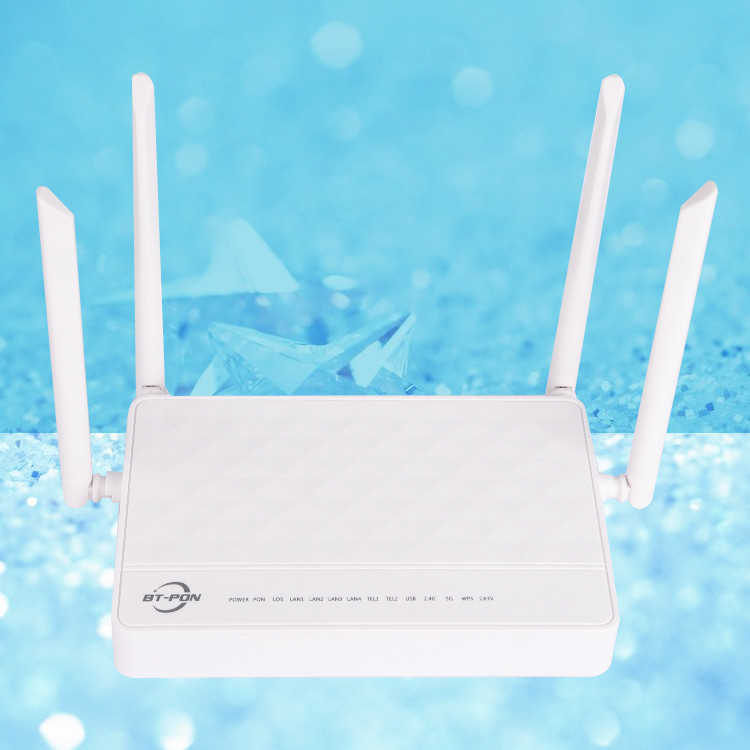

FIBER OPTIC NETWORK ROUTER FEATURES BT-711GR WIFI ONU 4GE+2VOIP+ACWIF+1USB+CATV
The device has built-in two-layer switching function and three-layer routing function. BT-711XR is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmwar.
BT-711XR provide two POTS ports, four 10/100/1000M adaptive Ethernet ports, one USB port, and 802.11a/b/g/n/ac Wi-Fi access. BT-711XR features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the BT-711XR provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
- Provide Maximum rate 300Mbps 2.4GHz Wireless interface,and Maximum rate 866Mbps 5.8GHz Wireless interface,,2T2R external antenna, support multiple SSID Settings
- Support DDSN, ALG, DMZ and UPNP
- Provide POTS interface, support SIP protocol,POTS integrated circuit test complies GR-909
- Support CATV interface for Video Service,support to turn off CATV functionality
- Support EPON/GPON mode and switch mode automatically
- GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
- GPON:8 T-CONTs,32 GEM Ports
- Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
- Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
- Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
- Support PPPoE/ Static IP/ DHCP
- Bi-directional FEC
- Support IPv4, IPv6 and IPv4/IPv6
- Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
- Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
- Qos supports PQ, WRR, and CAR queue scheduling
|Size(L*W*H)||205mm (L) *140mm (W) *30mm (H)|
|Optical signal access||1*GPON/EPON|

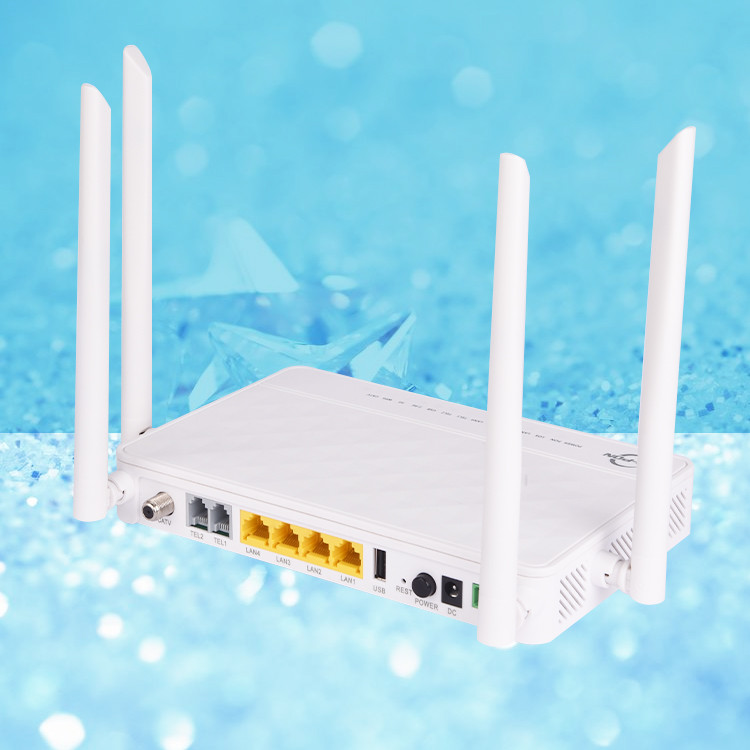

|User interface||4GE+2VOIP+2.4G/5.8G WLAN+1USB+CATV|
|Button||Power switch Button, Reset Button, WLAN Button, WPS Button|
|Power adapter input||100V～240V AC,50Hz～60Hz|
|PowerSupply requirement||12V DC,1.5A|
|Working temperature||-10°C ~ +45°C|
|Environment humidity||5% ~ 95% (Non-condensing)|
|Working wavelength||PON:up 1310nm,down 1490nm ；CATV:1550nm|
|TX Optical power value||0.5～4dBm|
|RX Optical power value||-27dBm|
GPON:Up 1.244Gbps；down 2.488Gbps
EPON:Up 1.244Gbps；down 1.244Gbps
|Interface type||4* RJ45|
|Interface parameters||4*10/100/1000Mbps auto adaptive Ethernet interfaces|
|Working mode||IEEE 802.11 b/g/n/AC|
|Antenna pattern||External 2*2T2R External antenna|
|Wireless bandwidth||Support 20MHz/40MHz/80MHz|
2.4G WLAN:Maximum rate 300Mbps
5.8G WLAN:Maximum rate 866Mbps
|SSID||Up to 4 SSID broadcasts are supported|
|Interface type||2* RJ11|
|Integrated circuit protocol||Gr-909 protocol is applicable|
|Optical receiving wavelength||1550±10nm|
|Optical reflection loss||≥45dBm|
|RF, WDM, optical power||+2~-15dBm|
|RF frequency range||47~1000MHz, RF output impedance: 75Ω|
|RF output level||78dBuV|
