FTTH 1310 1490NM 2.4G WIFI CATV 1GE XPON GPON ONT ONU

Basic Information
Place of Origin: Guangdong
Brand Name: BT-PON
Certification: CE
Model Number: BT-225GR
Minimum Order Quantity: 100
Price: Negotiation
Supply Ability: 10000 Unit/Units per Month
Use: FTTH Type: FTTx Solutions
Ports: 1GE+1VOIP+2.4G WIFI Power Adapter Input: 100~240 V AC, 50/60 Hz
Gross Weight: 192g Power Supply: 11~14 V DC, 1.5 A
Pon: XPON Package Size: 155mm (L) *113mm (W) *28mm (H)
High Light:

1490NM XPON ONT ONU

,

1310NM GPON ONT ONU

,

CATV GPON ONT ONU

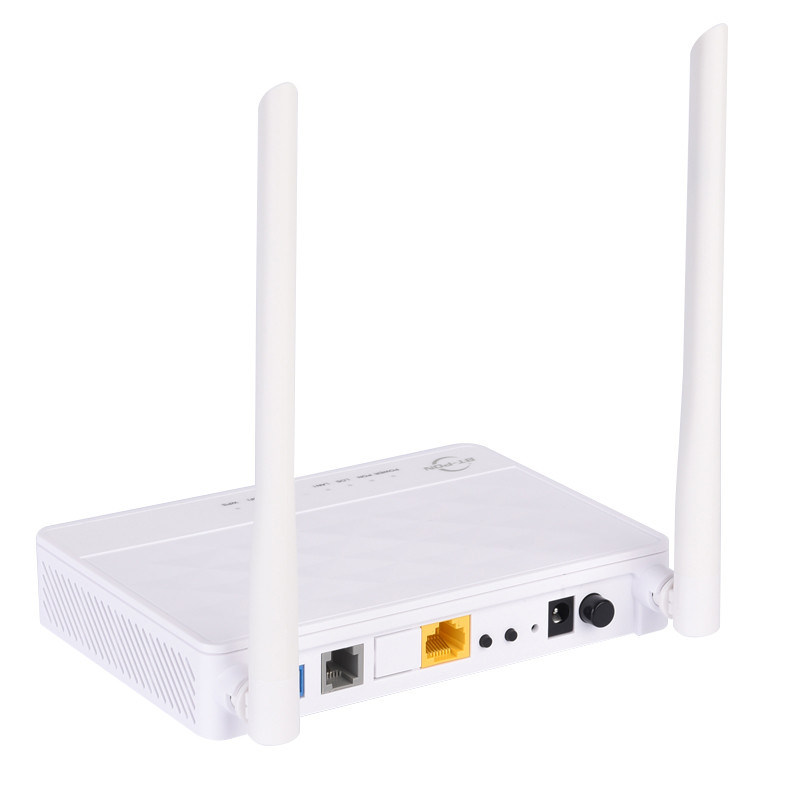

BT-225GR FTTH 1310 1490NM SINGLE MODE 1GE XPON GEPON ONT ONU WITH 2.4G WIFI CATV



Product Description:

BT-225XR model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.BT-225XR is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.

When the onu works, it will automatically identify EPON and GPON mode according to the access optical signal, otherwise it automatically defaults to GPON mode.
PON is a mature optical fiber access network technology, which integrates the advantages of low cost, high bandwidth, strong expansibility and other advantages. It adopts the passive spectral network and point-to-multipoint structure, which changes the problems existing in the active optical network such as many fault points, difficult maintenance and high operating costs.

Features:

Product Parameter:

Hardware Specifications
Size(L*W*H) 155mm (L) *113mm (W) *28mm (H)
Optical signal access 1*GPON/EPON
User interface 1GE+VOIP+2.4G WLAN
Indicator light POWER,PON,LOS,LAN1,TEL,WIFI,WPS
Button Power switch Button, Reset Button, WLAN Button, WPS Button
Weight 192g
Power adapter input 100V~240V AC,50Hz~60Hz
PowerSupply requirement 12V DC,1.5A
Power consumption <10w
Working temperature -10°C ~ +45°C
Environment humidity 5% ~ 95% (Non-condensing)
PON Interface
Module type Class B+ SC/UPC
Working wavelength up 1310nm,down 1490nm
TX Optical power value 0.5~4dbm
RX Optical power sensitivity -28dBm
Transmission distance 0~20km
Transmission rate

GPON:Up 1.244Gbps;down 2.488Gbps

EPON:Up 1.244Gbps;down 1.244Gbps

Ethernet interface
Interface type RJ45
Interface parameters 1*10/100/1000Mbps
Wireless
Working mode IEEE 802.11 b/g/n
Antenna pattern External 2T2R External antenna
Antenna gain 5dBi
Wireless bandwidth Support 20MHz/40MHz
Interface rate Maximum rate 300Mbps
SSID Up to 4 SSID broadcasts are supported
POTS Interface
Interface type 1* RJ11
Voice agreement SIP
Codecs G.711/G.723/G.726/G.729
Integrated circuit protocol Gr-909 protocol is applicable




FAQ:

1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.

FTTH 1310 1490NM 2.4G WIFI CATV 1GE XPON GPON ONT ONU 0FTTH 1310 1490NM 2.4G WIFI CATV 1GE XPON GPON ONT ONU 1FTTH 1310 1490NM 2.4G WIFI CATV 1GE XPON GPON ONT ONU 2
