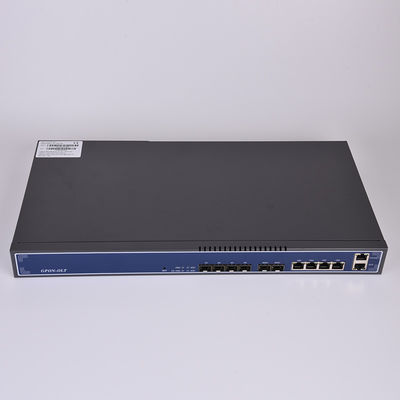

MINI OLT EPON SUPPORT OLT GPON 4 PORT SFP 10G SLOT 1U OLT EQUIPMENT WITH PON MODULE PX20+++
BT-P8104H 4 PON GPON OLT provides 4 GPON ports, 4*GE+2*GE(SFP)/10GE(SFP+) uplink ports. It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband multi-service access OLT equipment for service integrated network.
PTF3704E OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.
1U height 19 inch rack mount product with 4 PON ports, each port supports up to 128 ONUs, the whole device supports up to 512 ONUs. Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network.
- 1U 19 inch standard chassis GPON OLT with 4PON ports
- Compliant with ITU-T G984/G.988 standards and China Telecom GPON Technical Requirements
- Friendly EMS/Web/Telnet/CLI management
- 16K Mac address
- Open to any brand of ONT
- Support 4096 VLANs, port VLAN and protocol VLAN;
- Support VLAN tag/Un-tag ,VLAN transparent transmission;
- Support VLAN translation and QinQ;
- Support storm control based on port;
- Support port isolation;
- Support port rate limitation;
- Support 802.1D and 802.1W;
- Support static LACP;
- QoS based on port, VID, TOS and MAC address;
- Access control list;
- IEEE802.x flow control;
- Port stability statistic and monitoring;
- QoS based on port, VID, TOS and MAC address
- Support IGMP snooping, 256 IP Multicast Groups
- DHCP server,DHCP relay,DHCP snooping
- Support data encryption, multi-cast, port VLAN, separation, RSTP, etc
- Support ONT auto-discovery/link detection/remote upgrade of software;
- Support VLAN division and user separation to avoid broadcast storm;
- Support power-off alarm function, easy for link problem detection;
- Support broadcasting storm resistance function;
- Support port isolation between different ports;
- Support ACL and SNMP to configure data packet filter flexibly;
- Specialized design for system breakdown prevention to maintain stable system;
- Support RSTP,IGMP Proxy;
- Tcont DBA, Gemport traffic
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto-discovery/link detection/remote upgrade of software
- Support ONT automatically discovery, auto configuration
- Support remote software upgrade,download ONT firmware to OLT from web/tftp/ftp
- Two power supply redundancy design to improve reliability
||GPON ITU-T G.984.x, G.988
||4*GPON SFP Ports (Class C+), Receiving sensitivity: ≤ -30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +3～+7dBmTransmission distance: 20KM. Max splitting ratio1:128
||Tx1310, Rx 1490
|2*GE(SFP)/ 4*10GE (SFP+) auto-detection
||Support static route, RIP v1/v2, OSFP v2, ARP proxy
||1*10/100BASE-T out-band port, 1*CONSOLE port
||SNMP, Telnet, CLI, WEB
||Tag / Un-tag,VLAN transmission,QinQ
||Operating temp: 0 ~ +50
||Storing temp: -40 ~ +85
||100～240V, 47/63Hz, (DC:-48V optional)
1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
