8 UPLINK GE Optical Electrical 8 PON Cassette GPON OLT

Basic Information
Place of Origin: Guangdong
Brand Name: BT-PON
Certification: CE
Model Number: BT-P8104H
Minimum Order Quantity: 10
Price: Negotiation
Supply Ability: 10000 Unit/Units per Month
Weight: 3.1Kg Use: FTTH
Management Ports: 1*10/100BASE-T Out-band Port, 1*CONSOLE Port Interface: Supply 4 PON Port
Type: FTTx Solutions Management Mode: SNMP、Telnet、CLI、WEB、SSH V1/v2
Pon: GPON Dimension: 442mm×200mm×44mm(L×W×H)
High Light:

8 PON Cassette GPON OLT


Optical Cassette GPON OLT


8 PON Optical GPON OLT



Product Description:

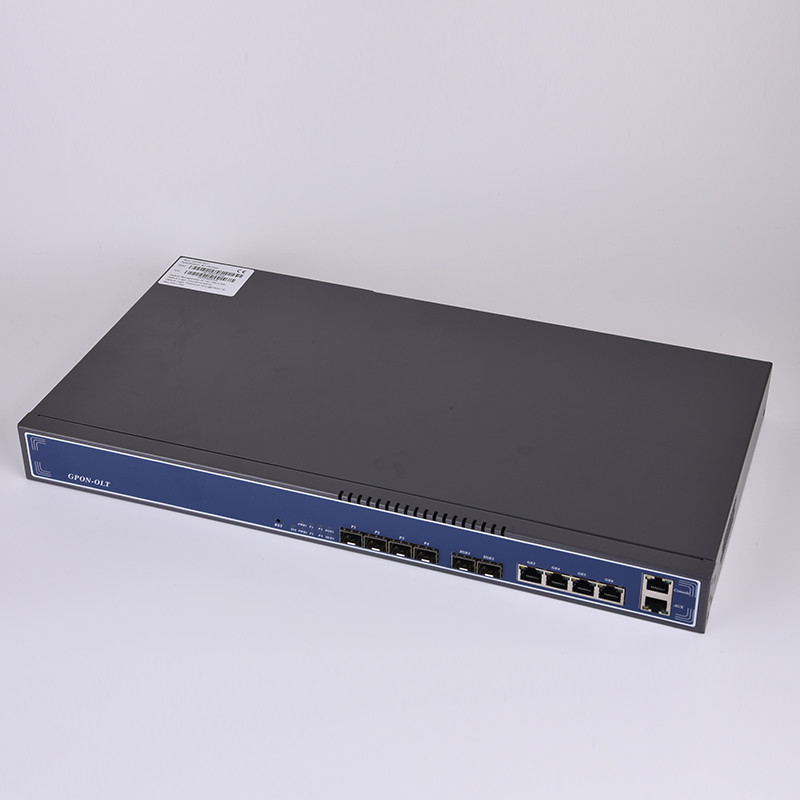

BT-P8104H GPON OLT products are 1U height 19 inch rack mount products. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTs can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN and ICT applications. We provides 8GE(copper) and 8SFP slots independent interface for uplink, and 8*GPON OLT ports for downstream. It can support 1024 ONUs under 1:128 splitter ratio.




Product Parameter:

Items Unit Specifications
PON standard.   GPON ITU-T G.984.x, G.988
PON interface Qty. 4*GPON SFP Ports (Class C+), Receiving sensitivity: ≤ -30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +3~+7dBmTransmission distance: 20KM. Max splitting ratio1:128

Upstream 2.488G

Downstream 1.244G

Wavelength nm Tx1310, Rx 1490
Uplink GE 4*GE(copper Ethernet)



2*GE(SFP)/ 4*10GE (SFP+) auto-detection
Layer 3   Support static route, RIP v1/v2, OSFP v2, ARP proxy
Management Ports   1*10/100BASE-T out-band port, 1*CONSOLE port
Management Mode   SNMP, Telnet, CLI, WEB
VLAN   Tag / Un-tag,VLAN transmission,QinQ
Operating condition Operating temp: 0 ~ +50
Storing condition Storing temp: -40 ~ +85
Humidity % 5~90(non-condensing)
Power Supply AC 100~240V, 47/63Hz, (DC:-48V optional)
Power consumption W ≤45
Dimension mm 442*220*43.6(L×W×H)
Net weight Kg 2.8




1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.

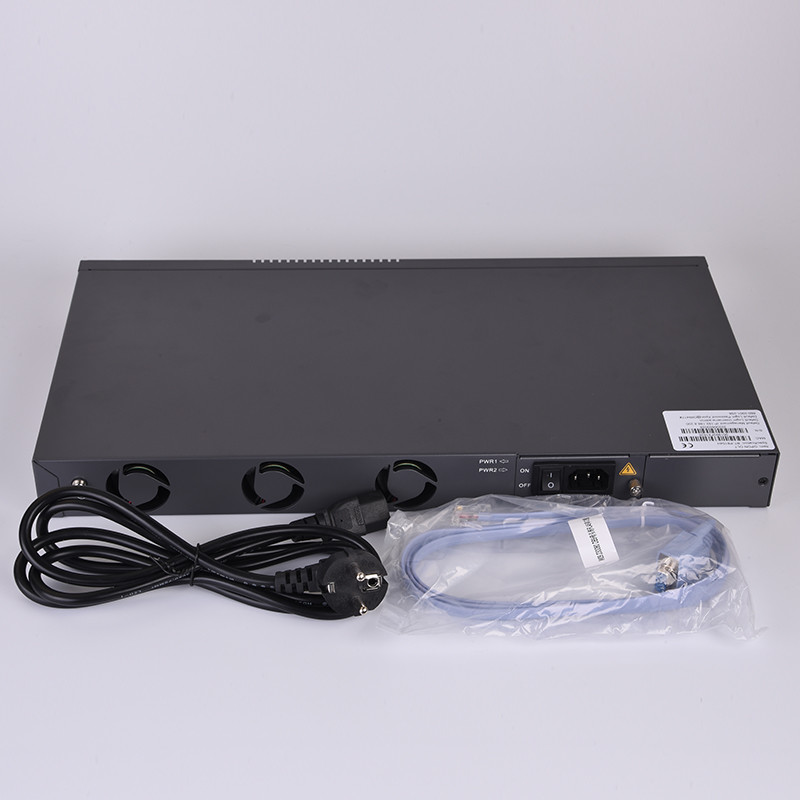

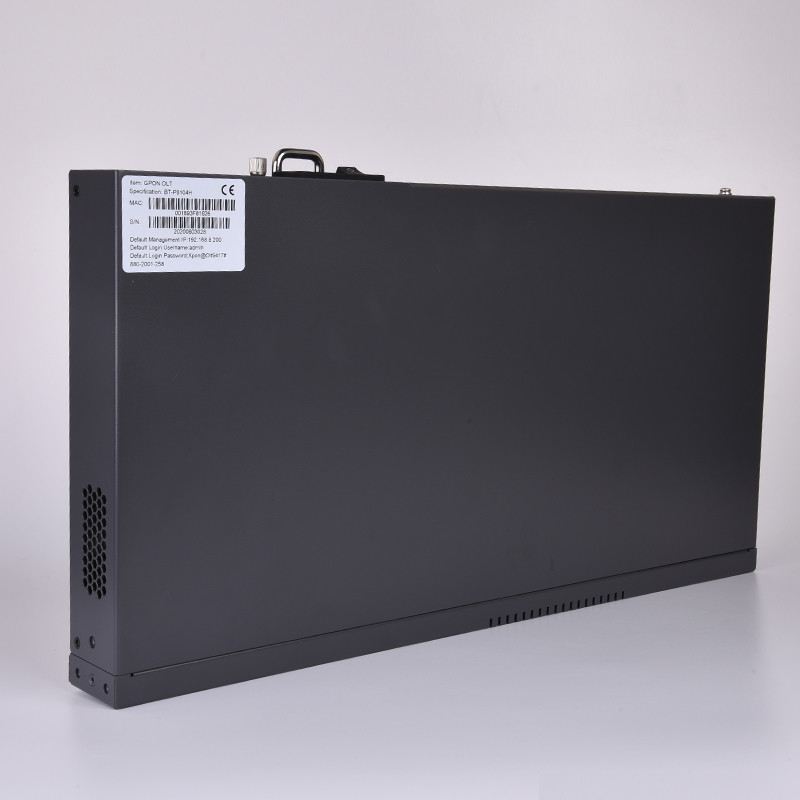

8 UPLINK GE Optical Electrical 8 PON Cassette GPON OLT 08 UPLINK GE Optical Electrical 8 PON Cassette GPON OLT 18 UPLINK GE Optical Electrical 8 PON Cassette GPON OLT 2
