||Internal Power Supply
||FCC, Ce, RoHS, Sgs, BIS（ISI)
||Full-Duplex & Half-Duplex
||Low Power Consumption
||1-24 Port Support PoE
Poe Switch For IP Camera,
10 Ports Poe Network Switch,
100 Mbps Poe Network Switch

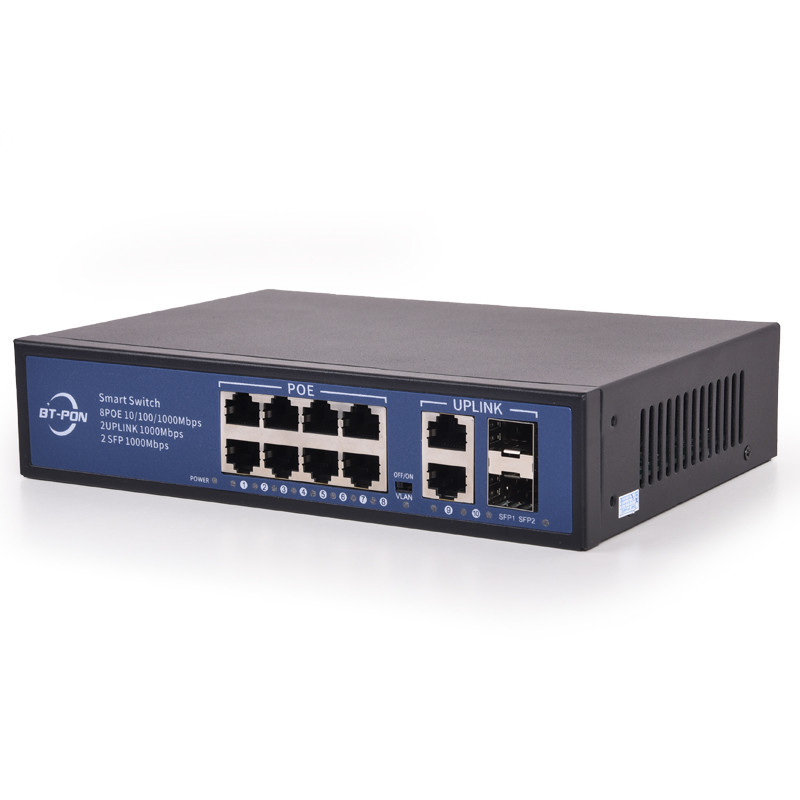

10/100 MBPS 8PORTS MICRO CONTROL POE NETWORK SWITCH 10 PORTS FOR IP CAMERA BUILD IN POWER ADAPTER
he switch complies with 802.3af/at PoE+ standards, supporting up to 30W on each PoE port, not to exceed the switch’s specific power budget. This PoE Switch features ten auto-detecting full/half-duplex ports with automatic crossover detection (MDI/MDI-X). The enables users to easily connect and supply power to PoE capable devices such as wireless Access Points (Aps), IP cameras, and IP phones. And it can also connect other Ethernet devices like computers, printers, and Network Attached Storage (NAS) to fit into any type of network application.
- Support wireless access point (AP with POE function) and network surveillance camera (with POE function) through Category 5
- Ethernet cable
- 5~25 ports support standard IEEE802.3af power supply
- 5-25 10/100Mbps adaptive RJ45 ports4. Comply with IEEE802.310Base-T and IEEE802.3u100Base-TX standards
- Flow control mode: full duplex adopts lEEE802.3x standard, half duplex adopts
- Back pressure standard
- Support port auto flip (Auto MDl/MDlX)
- Support uplink port lightning protection (port meets secondary lightning protection requirements)
- Each port theory can reach 15.4W
- Exchange mechanism using store-and-forward
- The port supports wire-speed switching, and the line speed can be reached within the range of 64~1536 frames.
- No fan, natural heat dissipation
- Small, compact, quiet design suitable for placement on the desktop or wall
||• IEEE 802.3,IEEE 802.3u,IEEE 802.3x, IEEE 802.3af,IEEE 802.3at
• 4 * 10 / 100/1000Mbps RJ45 port
• 2 * 10 / 100/1000Mbps RJ45 uplink port
|PoE Power Supply
• 4 * 10 / 100/1000Mbps RJ45 port supports PoE + power supply (Data / PoE)
• Maximum single port power supply is 30W
• The power supply of the whole machine is 120W
• 1-4 ports support IEEE802.3af / at
• Support RJ45 network port 1/2 +, 3 / 6- line pair
• Forwarding data port has a LINK / ACT.1000Mbps indicator
• The uplink port has two LINK / ACT.1000Mbps indicators
• PoE status indicator
• Machine power indicator
• Store and forward
• Support 2K MAC address table depth
• 12Gbps backplane bandwidth
• 10Mbps: 14880pps / port
• 100BASE-T: 148800pps / port
• 1000BASE-T: 1488095pps/port
• Fast and forward, MAC automatic learning and aging, power supply priority mechanism
•IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control
||• Working temperature: -10 ℃ --55 ℃
• Internal power supply
