||Place Of Origin:
||SC UPC FTTH Fusion Splice-on Connector
||Blue Or Green
||Holt Melt Or Cold Type
APC UPC Fiber Optic Fast Connector,
SC UPC Fiber Optic Fast Connector,
APC UPC FTTH fast connector

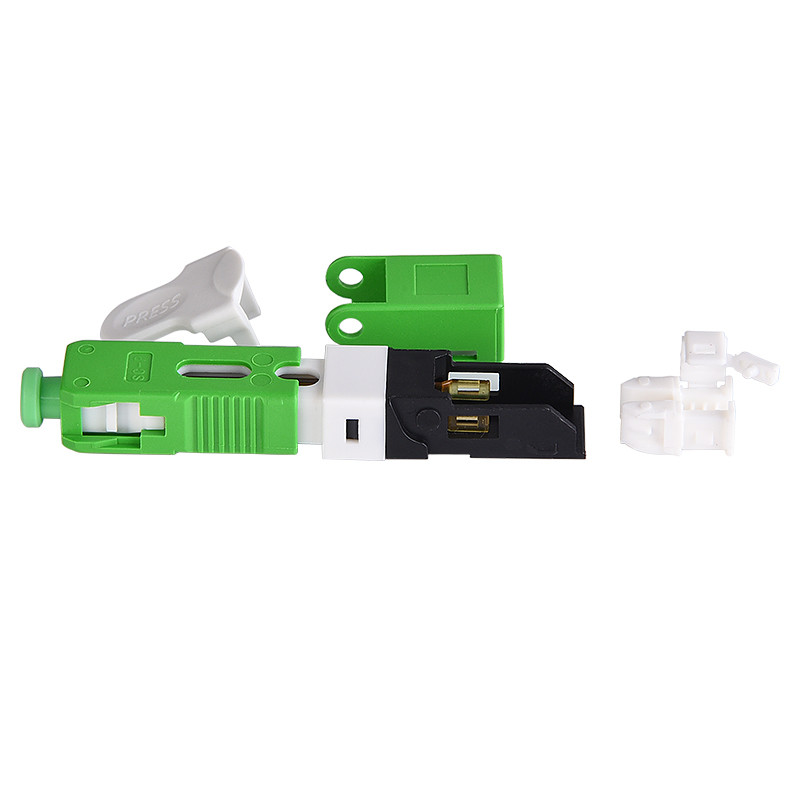

FTTH FIELD ASSEMBLY QUICK CONECTOR FAC SC APC UPC FIBER OPTIC FAST CONNECTOR
Fiber Optic Fast Connector is used for field-installable optical fiber connector. It can provide Open flow and Precast type of products,whose optical and mechanical specification meets the standard optical fiber connector. it is designed for high quality and high efficiency for installation.
the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.
- Factory-installed fiber stub
- No epoxy or polishing required
- Quick and easy fiber termination in the field 4.Eliminates cable excess length and pigtail splicestorage
- Eliminates cable excess length and pigtail splicestorage
- Cost effective
- Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom cable
||SM(9/125), MM(50/125, 62.5/125)
|Fiber cable type
||3.0x2.1mm flat, 2.0mm, 3.0mm round Drop Cable
||≤ 0.3dB(pc), ≤ 0.2dB(APC)
||≥ 50dB(PC), ≥ 55dB(APC)
|Fastening Strength of Bare Fiber
|Tighten Strength of Coating
|Tensile Strength Test
|Tensile strength (20 N)
||≤ 90 seconds
|Humidity (+25+65 93 R.H.100 hours)
|Mechanical Durability (500 times)
||IL ≤ 0.3dB
|Drop Test (4meters concrete floor, once each direction, three times in total)
||IL ≤ 0.3dB
||Above 5 times
||-40° C~70° C
||-40° C ~ +85° C(Circular Temperature: sustain 100 hours≤0.2dB)
