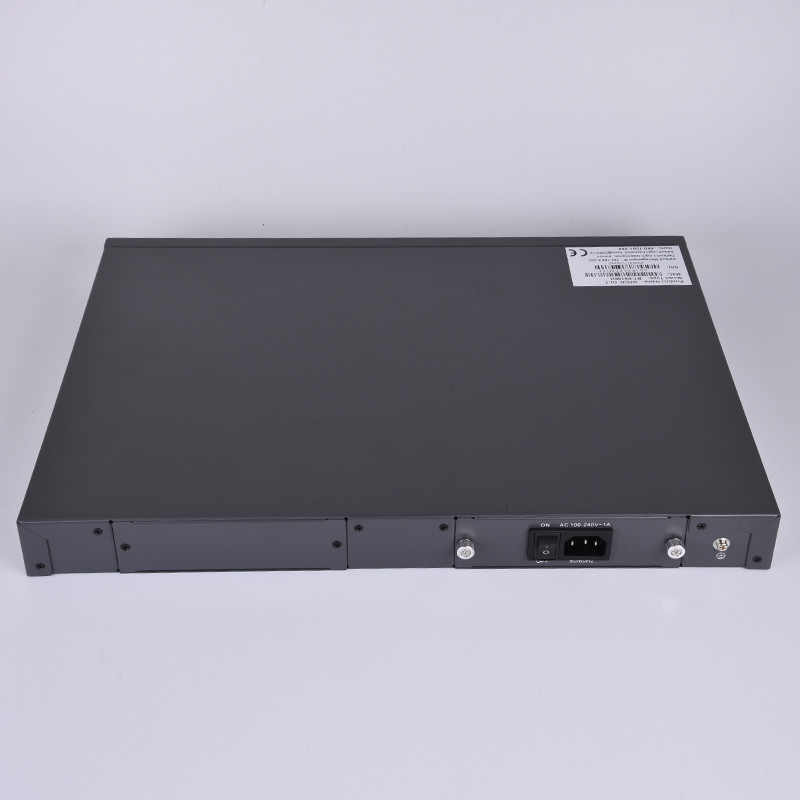

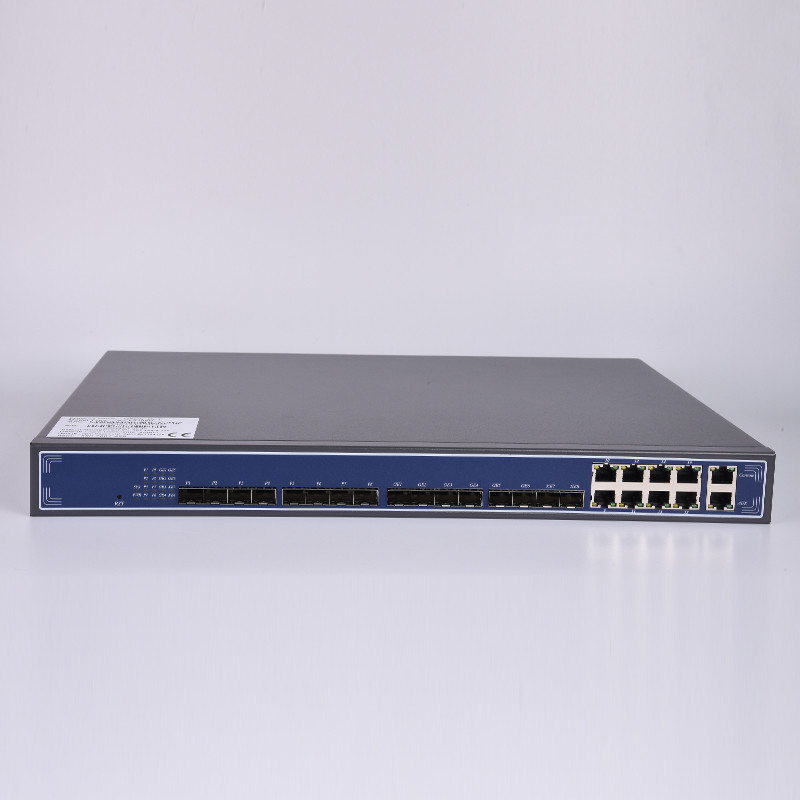

FTTH Telecommunication Fiber Optic Equipment 8 Port GPON OLT

Basic Information
Place of Origin: Guangdong
Brand Name: BT-PON
Certification: CE
Model Number: BT-P8108H
Minimum Order Quantity: 10
Price: Negotiation
Supply Ability: 10000 Unit/Units per Month
Management Ports: 1*10/100BASE-T Out-band Port, 1*CONSOLE Port Type: FTTx Solutions
Use: FTTH Weight: 3.1Kg
Interface: Supply 8 PON Port Management Mode: SNMP、Telnet、CLI、WEB、SSH V1/v2
Pon: GPON Dimension: 442mm×200mm×44mm(L×W×H)
High Light:



1U 8 Port GPON OLT


FTTH Telecommunication GPON OLT



Product Description:

BT-P8108H GPON OLT products are 1U height 19 inch rack mount products. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTs can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN and ICT applications.



Product Parameter:

Items Unit Specifications
PON standard.   GPON ITU-T G.984.x
PON interface   8*GPON SFP Ports (Class C+), Receiving sensitivity: ≤-30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +3~+7dBmTransmission distance: 20KM. Max splitting ratio1:128

Upstream 2.488G

Downstream 1.244G

Wavelength nm Tx1310, Rx 1490
Uplink GE 8*copper Ethernet ports 10/100/1000M auto-negotiation
  SFP 10GE 2* SFP+ (10GE)
Layer 3   Support static route, ARP proxy, hardware Host Routes, hardware Subnet Routes
Management Ports   1*10/100BASE-T out-band port, 1*CONSOLE port
Management Mode   SNMP,Telnet,CLI,WEB,SSH v1/v2
Backplane Gbps 128
MAC table K 16
Operating condition Operating temp: -5 ~ +55
Storing condition Storing temp: -40 ~ +85
Humidity % 5~90(non-condensing)
Power consumption W ≤45
Dimension mm 442mm×200mm×44mm(L×W×H)
Net weight Kg 3.1Kg



1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
