|Power Adapter Input:
||100~240 V AC, 50/60 Hz
GPON Optical Network Terminal,
XPON Optical Network Terminal,
3FE MINI GPON ONT
FTTH GPON TERMINAL 4 PORTS SC/UPC ONT 1GE 3FE WIFI EPON ONU FTTH WIFI MINI GPON ONT XPON

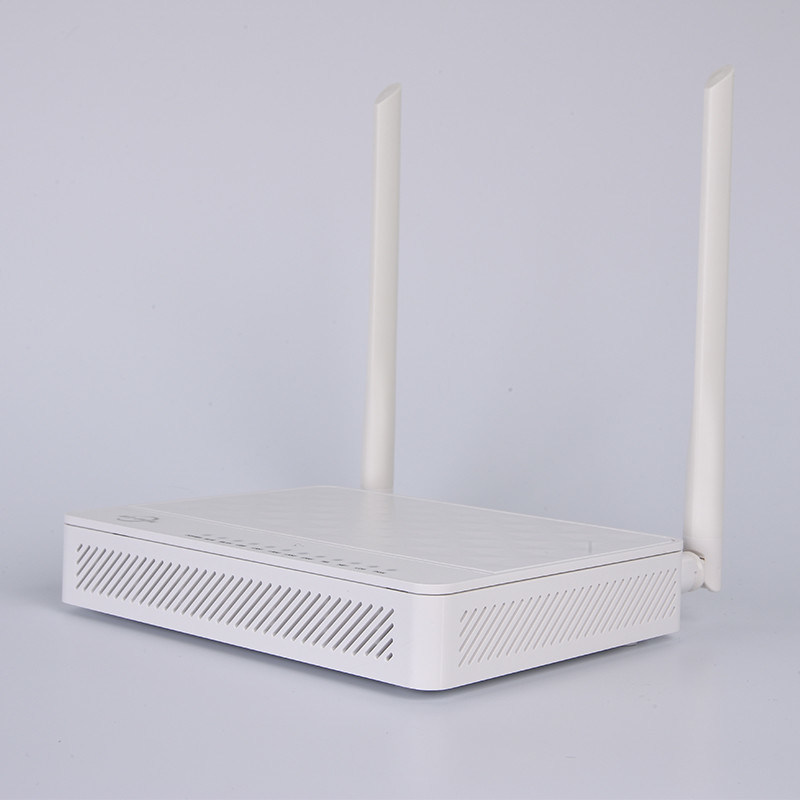

BT-601GB model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function.
They are highly reliable and easy to maintain, with guaranteed QoS for different service. And It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON equipment (V2.1 and above version) from Telecom.
- Compliance with IEEE 802.3ah & itu-t g.984.x standard
- GPON:8 T-CONTs,32 GEM Ports
- Integrate OMCI and TR-069 remote configuration and maintenance
- Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
- Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
- Support PPPoE/ Static IP/ DHCP
- Bi-directional FEC
- Support IPv4, IPv6 and IPv4/IPv6
- Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
- Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
- Qos supports PQ, WRR, and CAR queue scheduling
- Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
- Support DDSN, ALG, DMZ and UPNP
- Provide POTS interface, support SIP protocol,POTS integrated circuit test complies GR-909
||165mm (L) *162mm (W) *28mm (H)
|Optical signal access
Or 4FE+VOIP+2.4G WLAN+1USB
||Power switch Button, Reset Button, WLAN Button, WPS Button
|Power adapter input
||-10°C ~ +45°C
||5% ~ 95% (Non-condensing)
||SFP Class B+ SC/PC
||up 1310nm,down 1490nm
|TX Optical power value
|RX Optical power value
Overload optical power:-8dBm
||Uplink 1.244Gbps；downlink 2.488Gbps
||1*10/100/1000Mbps and 3*10/100Mbps or 4*10/100Mbps auto adaptive Ethernet interfaces
||IEEE 802.11 b/g/n
||External 2T2R External antenna
||Maximum rate 300Mbps
||Up to 4 SSID broadcasts are supported
|Integrated circuit protocol
||Gr-909 protocol is applicable
It has an external high gain directional antenna, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.
