||4 Pc 8-16mm;16pc Flat Drop Cable
||NO. Of Plc Splitter:
||2pcs 1*8 Or 1pc 1*16 Splitter Module
|Diameter Of Cable:
||4 Pcs 8-16mm
||PC≥45dB, UPC≥50dB, APC≥60dB
||Can Be Customized
FTTH Fiber Optic Joint Box,
FTTX Fiber Optic Enclosure Box,
96 Core Fiber Optic Enclosure Box

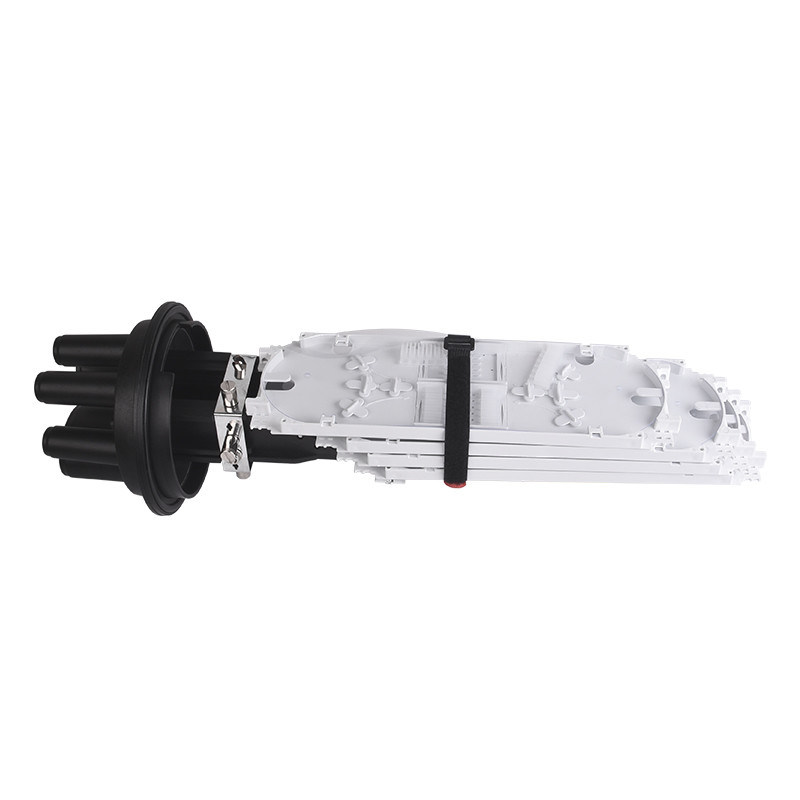

FTTH FTTX FOC 96CORE FIBER OPTIC SPLICE JOINT CLOSURE FIBER SPLICE ENCLOSURE BOX
Optical cable junction box, also known as optical cable junction box and gun barrel, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. It also has excellent mechanical strength. The solid shell and main structure of optical cable junction box can endure the worst environmental changes, and play a flame retardant role at the same time. Waterproof effect, so that vibration, impact, cable tension, twist and so on are protected.
- The closure casing is made of quality engineering plastics, and of good performance of ant-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
- The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment. The protection grade reaches IP68.
- The closures are applicable to ribbon type optical cable and common optical cable. The splice trays inside the closure are turntable like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable and fiber can be operated individually.
- The closure is of small volume, big capacity and convenient maintenance.
- The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance. The casing can be opened repeatedly without air leakage. No special tools are required.
- The operation is easy and simple. The air valve is provided for the closure and used to check the sealing performance.
- Seal performance: after the box is sealed, inflate to 100kPa inwards (inflation only apply to the models with the air hole), and then soak it in the water of normal temperature, after 15 minutes of steady observation, there is no bubble to overflow.
- Insulation resistance: the insulation resistance between the metal work piece and the earth is greater than 20kMΩ.
||Fiber Optic Splice Box
|Scope of application
||12 core to 48 core
|Scope of use
||Outdoor Aerial Dome,Buried,pole mount type outdoor
||- 40 °C ~ + 60 °C
||FTTH FTTB FTTX Network
