||Full-Duplex & Half-Duplex
||Internal Power Supply
||FCC, Ce, RoHS, Sgs, BIS（ISI)
||Low Power Consumption
||1-24 Port Support PoE
Ethernet Poe Network Switch,
250m Poe Network Switch,
24 Port Ethernet Poe Switch

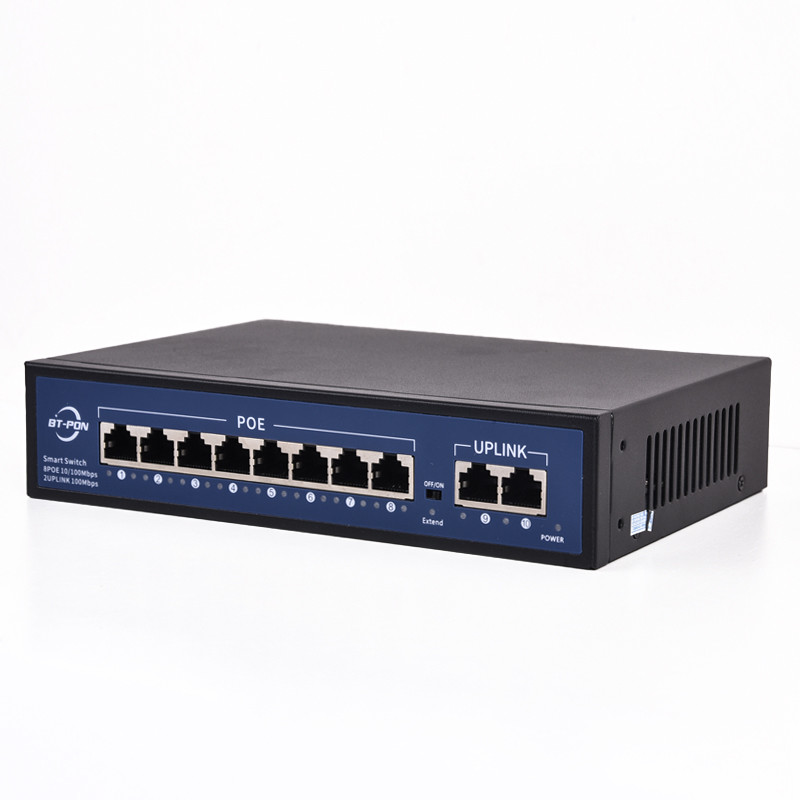

4/8/16/24CH PORT ETHERNET POE SWITCH NETWORK 250M WITH BUILT IN POWER SUPPLY
The PoE Switch provides 2 x 10/100Mbps and 4 x 10/100Mbps PoE Plus ports. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 65W, up to 30W per port. , which provides convenient and flexible installation. The PSE604EX is designed for small businesses that prefer an affordable solution for PoE deploying infrastructure.
- Wireless Access Point
- IP Camera
- IP Phone
- Computer Networks
- Model:8+2 Port POE Switch (External)
- POE Port:1 to 8 support POE network power supply
- VLAN isolation:support
- Power Pin:Both 1/2+,3/6- and 4/5+7/8-
- Whole Power:110v-240v
- Total power:120w
- POE Type:End-span Power Distance:≤250m
- Network Standard: IEEE 802.3, IEEE802.3u,802.3x,802.3af/at
- Network Medium: 10/100BASE-TX:5 class and above non shielded twisted pair
- Switch Capability:1.6Gbps
- Forwarding Mode: Store and forward
- Forwarding Rate:10BASE-T:14880PPS/port 100BASE-tx:14800pps/port
- MAC Address: table 1K
- LED Indicator:Each port occupied 1 LINK/ACT.100Mbps,POE Status Indicator, Whole power indicator
- Working temperature:-10°-- 55°C
Up to 30W of Power on
Extender 250M 1-16 port
Compatible With All IEEE 802.3af/at or Legacy
Safe: Low Power Devices Receive Only the Power They Need
Safe and Reliable Power to WLAN Access Points
Automatic Detection and Protection of Non–standard Ethernet Terminals
Supports 10/100 Base-T applications
Compact Design Fits Easily in WLAN Access
Plug-and-Play no configuration required
Internal power supply
Easy installation and maintenance
Save up to 83% power with Green Technology
Complies to IEEE 802.3af PoE standard and is backward
||• IEEE 802.3,IEEE 802.3u,IEEE 802.3x, IEEE 802.3af,IEEE 802.3at
• 4 * 10 / 100/1000Mbps RJ45 port
• 2 * 10 / 100/1000Mbps RJ45 uplink port
|PoE Power Supply
• 4 * 10 / 100/1000Mbps RJ45 port supports PoE + power supply (Data / PoE)
• Maximum single port power supply is 30W
• The power supply of the whole machine is 120W
• 1-4 ports support IEEE802.3af / at
• Support RJ45 network port 1/2 +, 3 / 6- line pair
• Forwarding data port has a LINK / ACT.1000Mbps indicator
• The uplink port has two LINK / ACT.1000Mbps indicators
• PoE status indicator
• Machine power indicator
• Store and forward
• Support 2K MAC address table depth
• 12Gbps backplane bandwidth
• 10Mbps: 14880pps / port
• 100BASE-T: 148800pps / port
• 1000BASE-T: 1488095pps/port
• Fast and forward, MAC automatic learning and aging, power supply priority mechanism
•IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control
||• Working temperature: -10 ℃ --55 ℃
• Internal power supply
