||11~14 V DC, 1.5 A
||Power Adapter Input:
||100~240 V AC, 50/60 Hz
Catv Equipment GPON ONU,
GPON ONU 2.4G WIFI,
Gepon Xpon Epon Converter

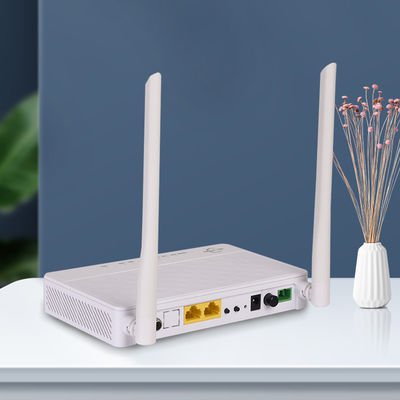

BT-213 Ftth Fiber Optic Wifi Router Catv Equipment Gepon Xpon Gpon Epon Converter Cabinet Onu
The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.BT-213XR is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.
- Support PPPoE/ Static IP/ DHCP
- Support IPv4, IPv6 and IPv4/IPv6
- Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
- Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
- Qos supports PQ, WRR, and CAR queue scheduling
- Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
- Support DDSN, ALG, DMZ and UPNP
- Support CATV interface for Video Service
- Support EPON/GPON mode and switch mode automatically
- GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
- GPON:8 T-CONTs,32 GEM Ports
- Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
- Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
- Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
||168mm (L) *130mm (W) *28mm (H)
|Optical signal access
||1GE+1FE+2.4G WLAN +CATV
||Power switch Button, Reset Button, WLAN Button, WPS Button
|Power adapter input
||-10°C ~ +45°C
||5% ~ 95% (Non-condensing)
||Class B+ SC/APC
||up 1310nm,down 1490nm
|TX Optical power value
|RX Optical power sensitivity
GPON:Up 1.244Gbps；down 2.488Gbps
EPON:Up 1.244Gbps；down 1.244Gbps
||1*10/100/1000Mbps and 1*10/100Mbps
||IEEE 802.11 b/g/n
||External 2T2R External antenna
||Maximum rate 300Mbps
||Up to 4 SSID broadcasts are supported
|Optical receiving wavelength
|Optical reflection loss
|RF, WDM, optical power
|RF frequency range
||47~1000MHz, RF output impedance: 75Ω
|RF output level
