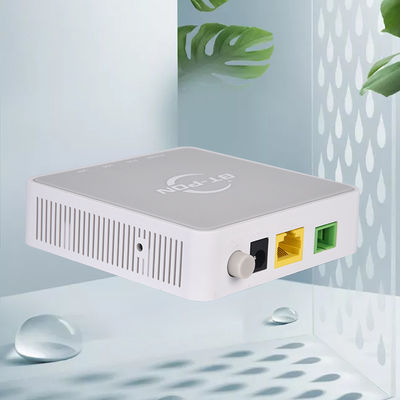

Ftth Fiber Optic Router Catv Equipment Gepon Xpon Gpon Epon Converter Cabinet Ge Onu
BT-121 model ONU products fully comply with IEEE 802.3-2005 and the China Telecom EPON device technical specification (V2.1). It is operative, manageable and maintainable at telecommunication level, and can provide high speed data service for customers. It has a PON uplink port that connects to office end apparatus through optical fiber.
it is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
- Supports the WEB configuration function
- Support SFU and HGU types, can switch to use each other
- HGU type,Support PPPoE/ Static IP/ DHCP
- Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
- Layer 3 Home Gateway/CPE features with Hardware NAT, supports Route mode, etc
- Support multicast IGMP snooping
- Supports the L2 wire speed forwarding
- Supports the AES-128 algorithm for data encryption of downlink data
- WAN connections support Route and Bridge mode
- Route mode supports PPPoE/DHCP/ static IP
- Support QoS and DBA
- Support port Isolation and port vlan configuration
- Supports the configuration of Ethernet interface rates, working modes,MDI/ MDIX auto-negotiation mode, and Pause flow control
- Provides performance statistics on all Ethernet lines
- GPON working mode Compliance with IEEE 802.3ah & itu-t g.984.x standard
- GPON:8 T-CONTs,32 GEM Ports
- EPON working mode compliant with IEEE 802.3ah specification and OAM protocol
||90mm (L) ×90mm (W) ×24mm (H)
|Optical signal access
||Power switch Button, Reset Button
|Power adapter input
||-10°C ~ +45°C
||5% ~ 95% (Non-condensing)
||up 1310nm,down 1490nm
|TX Optical power value
|RX Optical power sensitivity
GPON:Uplink 1.244Gbps；downlink 2.488Gbps
EPON:Uplink 1.244Gbps；downlink 1.244Gbps
||1 x 10/100/1000Mbps auto adaptive Ethernet interfaces
