| Place of Origin: | Guangdong |
|---|---|
| Brand Name: | BT-PON |
| Certification: | CE |
| Model Number: | BT-P8116H |
| Minimum Order Quantity: | 10 |
| Price: | Negotiation |
| Supply Ability: | 10000 Unit/Units per Month |
| Type: | FTTx Solutions | Power Supply: | AC: Input 90～264V 47/63Hz; DC: Input -36V～-72V |
|---|---|---|---|
| Power Consumption: | ≤110W | Use: | FTTH |
| Pon: | GPON | Dimension: | 440mm×44mm×410mm |
| Keyword: | Gpon Olt | ||
| High Light: | BT P8116H 16 Port OLT,440mm×44mm×410mm OLT 16 Port,BT P8116H 16 Port Gpon OLT |
||

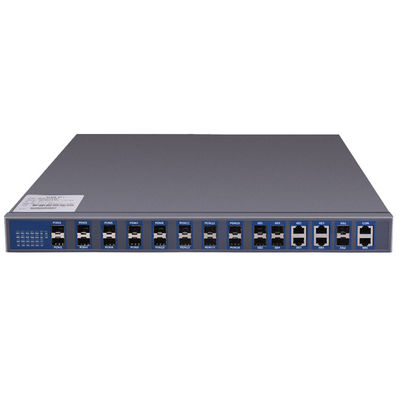

BT P8116H 16 Port OLT Fiber Gpon Pon Solution 440mm×44mm×410mm
fiber olt gpon olt 16 port gpon pon solution BT-P8116H
GPON OLT BT-P8116H Description
GPON OLT 16PON is a small-capacity cassette GPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/Unicom GPON, with super GPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. GPON OLT 16PON can be used with network management system so as to provide users with the comprehensive access and perfect solution.
| Item | GPON OLT 16PON |
| Service Port | 16*PON port, 4*GE COMBO port, 2*10GE SFP+ port |
| Redundancy Design |
Dual power supply Support AC input, double DC input and AC+DC input |
| Power Supply |
AC: input 90～264V 47/63Hz; DC: input -36V～-72V; |
| Power Consumption | ≤110W |
| Dimensions (Width x Height x Depth) | 440mm×44mm×410mm |
| Weight (Full-Loaded) | ≤7.5kg |
| Environmental Requirements |
Working temperature: -10°C～55°C Storage temperature: -40°C～70°C Relative humidity: 10%～90%, non-condensing |
| Item | GPON OLT 16PON | |
|
|
ITU-TG.984.x standard Maximum 20 Km PON transmission distance access 128 terminals for single fiber PON Uplink and downlink triple churning encrypted function with 128Bits ONU terminal legitimacy certification, report illegal ONU registration DBA algorithm, the particle is 1Kbit/s Standard OMCI management function ONU batch software upgrade, fixed time upgrade, real time upgrade PON port optical power detection |
|
| L2 Features | MAC |
MAC Black Hole Port MAC Limit 64K MAC (packet exchange chip cache 2MB, external cache 720 MB ) |
| VLAN |
Port-based/MAC-based/protocol/IP subnet-based QinQ and flexible QinQ (StackedVLAN) VLAN Swap and VLAN Remark PVLAN to realize port isolation and saving public-vlan resources GVRP |
|
| Spanning Tree |
Remote loop detecting |
|
| Port |
Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring |
|
|
Features |
User’s Security |
Anti-ARP-flooding IP Source Guard create IP+VLAN+MAC+Port binding Port Isolation MAC address binding to the port and MAC address filtering IEEE 802.1x and AAA/Radius authentication |
| Device Security |
Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP detection, worm and Msblaster worm attack SSHv2 Secure Shell SNMP v3 encrypted management Security IP login through Telnet Hierarchical management and password protection of users |
|
| Network Security |
User-based MAC and ARP traffic examination Restrict ARP traffic of each user and force-out user with abnormal ARP traffic Dynamic ARP table-based binding IP+VLAN+MAC+Port binding L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet Port-based broadcast/multicast suppression and auto-shutdown risk port URPF to prevent IP address counterfeit and attack DHCP Option82 and PPPoE+ upload user’s physical location Plaintext authentication of OSPF, RIPv2 and BGPv4 packets and MD5 cryptograph authentication |
|
|
Service Features
|
ACL |
Time Range ACL Flow classification and flow definition based on source/destination MAC address, VLAN, 802.1p, ToS, DiffServ, source/destination IP(IPv4/IPv6) address, TCP/UDP port number, protocol type, etc packet filtration of L2～L7 deep to 80 bytes of IP packet head |
| QoS |
Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark CAR(Committed Access Rate), Traffic Shaping and flow statistics Packet mirror and redirection of interface and self-defined flow Super queue scheduler based on port or self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR. Congestion avoid mechanism, including Tail-Drop and WRED |
|
| IPv4 |
ARP Proxy DHCP Relay DHCP Server Static Routing RIPv1/v2 OSPFv2 ECMP PBR |
|
| Multicast |
IGMPv1/v2/v3 Snooping IGMP Filter MVR and cross VLAN multicast copy IGMP Fast leave IGMP Proxy PIM-SM/PIM-DM/PIM-SSM MLDv2/MLDv2 Snooping |
|
| Reliability | Loop Protection |
Loopback-detection |
| Link Protection |
RSTP/MSTP (recover-time <1s) LACP (recover-time <10ms) BFD |
|
| Device Protection |
1+1 power hot backup |
|
| Maintenance | Network Maintenance |
Port real-time, utilization and transmit/receive statistic based on Telnet RFC3176 sFlow analysis LLDP GPON OMCI RFC 3164 BSD syslog Protocol Ping and Traceroute |
| Device Management |
CLI, Console port, Telnet and WEB SNMPv1/v2/v3 RMON (Remote Monitoring)1,2,3,9 groups MIB NTP network management |
|
