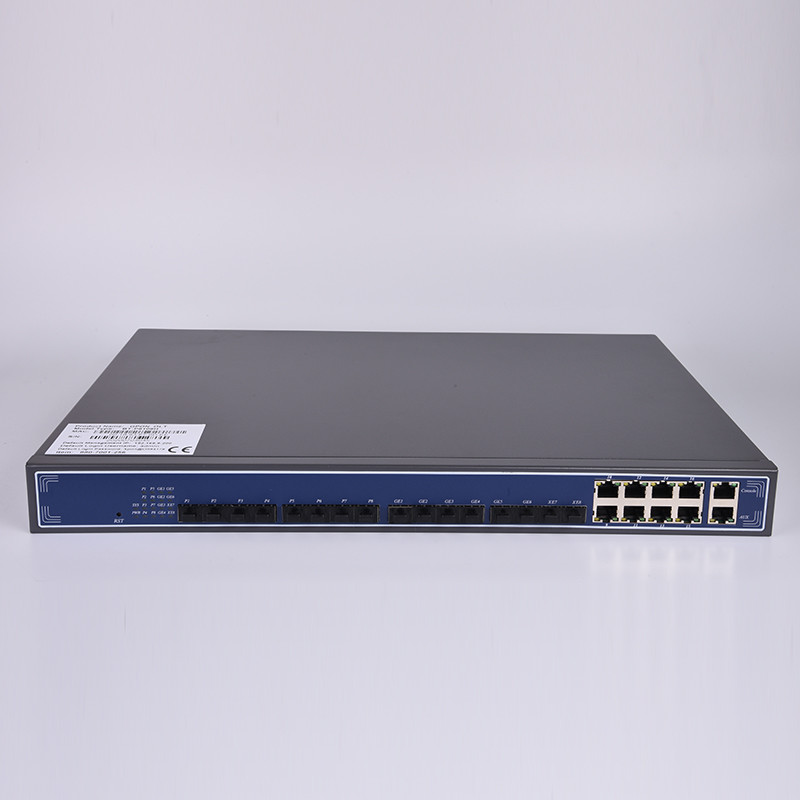

Epon Gepon V1600A 8 Port OLT 1U standard rack FTTH Management Snmp

Basic Information
Place of Origin: Guangdong
Brand Name: BT-PON
Certification: CE
Model Number: BT-P8108H
Minimum Order Quantity: 2
Price: Negotiation
Supply Ability: 10000 Unit/Units per Month
Management Ports: Provide 10/100Base-T RJ45 Out-band Network Management Port Use: FTTH
Pon: EPON Data Exchange: 3 Layer Ethernet Switching, Switching Capacity 128Gbps, To Ensure Non-blocking Switching
Type: FTTx Solutions Weight: 4.6 Kg
Interface: Supply 8 PON Port Dimension: 300.0mm(L)* 440.0mm(W)* 44.45mm(H)
High Light:

V1600A 8 Port OLT

,

1U 8 Port OLT

,

Olt Epon V1600A

Epon Gepon V1600A 8 Port OLT 1U Standard Rack FTTH Management Snmp



Epon Olt Ftth Management Snmp Epon Gepon Olt V1600a 1u 2pon



Features:



Sfp Olt Gpon Connector Gpon 8 Port Olt Device​



8 Port Olt Description:

BT-P6108H EPON OLT is a 1U standard rack-mounted equipment complying with IEEE802.3ah, YD / T 1475-2006 and CTC 2.0,2.1 and 3.0.It has flexible, easy to deploy, small size, high performance and other characteristics. The product is particularly suitable for residential broadband fiber access (FTTx), telephone and television "triple play", the power consumption information collection, video surveillance, networking, private network applications and other applications.

Product Parameter:

Hardware Features
Business Interface

Supply 8 PON Port



4SFP 10GE slots for Uplink
10/100/1000M auto-negotiable,RJ45:8pcs for Uplink
Management Ports Provide 10/100Base-T RJ45 out-band network management port

It can manage the in-band network through any GE uplink port

Provide local configuration port



Provide 1 CONSOLE port
Data exchange 3 layer Ethernet switching, switching capacity 128Gbps, to ensure non-blocking switching
LED Light RUN,PW instructions system running,power working status
PON1 to PON8 instructions 8 pcs PON port LINK and Active status
GE1 to GE8 instructions 8 pcs GE uplink’s LINK and Active status
XGE1 to XGE4 instructions 4 pcs 10GE uplink’s Link and Active status
Power Supply 220VAC AC: 100V~240V,50/60Hz DC:-36V~-72V
Power Consumption 50W
Weight 4.6 Kg
Working Temperature 0~55℃
Dimension 300.0mm(L)* 440.0mm(W)* 44.45mm(H)
EPON Function
EPON Standard Comply with IEEE802.3ah,YD/T 1475-200 and CTC 2.0 ,2.1 and 3.0 standard

Dynamic bandwidth allocation

(DBA)

Support fixed bandwidth, guaranteed bandwidth, maximum bandwidth, priority, etc. SLA parameters;
Bandwidth granularity 64Kbps
Security Features Support PON line AES and triple churing encryption;
Support ONU MAC address binding and filtering;
VLAN Support 4095 VLAN additions, transparent transmission, conversion and deletion;
Support 4096 VLAN additions, transparent transmission, conversion and deletion;
Support VLAN Stacking (QinQ)
MAC address learning Support 32K MAC addresses;
Hardware-based wire-speed MAC address learning;
Based on port, VLAN, link aggregation MAC restrictions;
Spanning Tree Protocol Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning Tree Protocol
Multicast Support IGMP Snooping and IGMP Proxy, support CTC controllable multicast;
Support IGMP v1/v2 and v3
NTP protocol Support NTP protocol
Quality of Service(QoS) Support 802.1p priority queue scheduling;
Support SP, WRR or SP + WRR scheduling algorithm;

Access Control Lists

(ACL)

According to the destination IP, source IP, destination MAC, source MAC, destination protocol port number, source protocol port number, SVLAN, DSCP, TOS, Ethernet frame type, IP precedence, IP packets carried protocol type ACL rules set;
Support the use of the ACL rules for packet filtering;
Support Cos ACL rule using the above settings, IP priority setting, mirroring, speed limit and redirect the application;
Flow Control Support IEEE 802.3x full-duplex flow control;
Support port speed;
Link Aggregation Support 8 port aggregation group, each group supports 8 member ports
Port Mirroring Support the port mirroring of uplink interfaces and PON port
Log Support by the alarm log output level shield;
Support for logging output to the terminal, files, and log server
Alarm Support four alarm levels (severity, major, minor, and warning);
Support 6 alarm types (communication, quality of service, processing error, hardware equipment and the environment);
Support alarm output to the terminal, log and SNMP network management server
Performance Statistics Performance statistics sampling time 1 ~ 30s;
Support the 15 minutes performance statistics of uplink interfaces ,PON port and ONU user port
Administration maintenance Support OLT configuration save, support restore the factory settings;
Support OLT online upgrade;
support ONU offline service configuration and automatically configure ;
Support ONU remote upgrade and batch upgrade;
Network management Support local or remote CLI management configuration;
Support SNMP v1/v2c network management, support band, in-band network management;
Support the standard of broadcasting industry "EPON + EOC" SNMP MIB and support auto-discovery protocol EoC headend (BCMP);
Support WEB config mamagement
Open interfaces for third-party network management;



Epon Gepon V1600A 8 Port OLT 1U standard rack FTTH Management Snmp 0Epon Gepon V1600A 8 Port OLT 1U standard rack FTTH Management Snmp 1Epon Gepon V1600A 8 Port OLT 1U standard rack FTTH Management Snmp 2
