| Place of Origin: | Guangdong |
|---|---|
| Brand Name: | BT-PON |
| Certification: | CE |
| Model Number: | BT-765XR |
| Minimum Order Quantity: | 100 |
| Price: | Negotiation |
| Supply Ability: | 10000 Unit/Units per Month |
| GPON: | Compliance With IEEE 802.3ah & Itu-t G.984.x Standard | Working Wavelength: | PON：up 1310nm， Down 1490nm |
|---|---|---|---|
| Weight:: | 300g | Antenna Gain: | 5dBi |
| TX Optical Power Value: | 0.5～4dBm | Transmission Rate:: | GPON:Up 1.244Gbps；down 2.488Gbps EPON:Up 1.244Gbps；down 1.244Gbps |
| Working Mode: | IEEE 802.11 B/g/n/AC | Module Type: | SC/UPC |
| Indicator Light: | POWER/PON/LOS/LAN1/ LAN2/LAN3/LAN4/TEL1/USB/2.4G/5G/WPS Button: Power Switch Button, Reset Button, WLAN Button, WPS Button | User Interface: | 2GE+2FE+2VOIP+2.4G/5.8G WLAN+1USB |
| Size: | 205*140 *30mm | Optical Signal Access: | 1*GPON/EPON |
| RX Optical Power Sensitivity: | -27dBm | Power Adapter Input: | 100V～240V AC， 50Hz～60Hz |
| Transmission Distance: | 0～20km | Antenna Pattern: | External 2*2T2R External Antenna |
| Wireless Bandwidth: | Support 20MHz/40MHz/80MHz | Interface Rate: | 2.4G WLAN：Maximum Rate 300Mbps 5.8G WLAN：Maximum Rate 866Mbps |
| Interface Type: | 2* RJ11 | Voice Agreement: | SIP |
| Codecs: | G.711/G.723/G.726/G.729 | Integrated Circuit Protocol: | Gr-909 Protocol Is Applicable |
| High Light: | WiFi Dual Band ONU,PPPoE Dual Band ONU,BT-765XR |
||

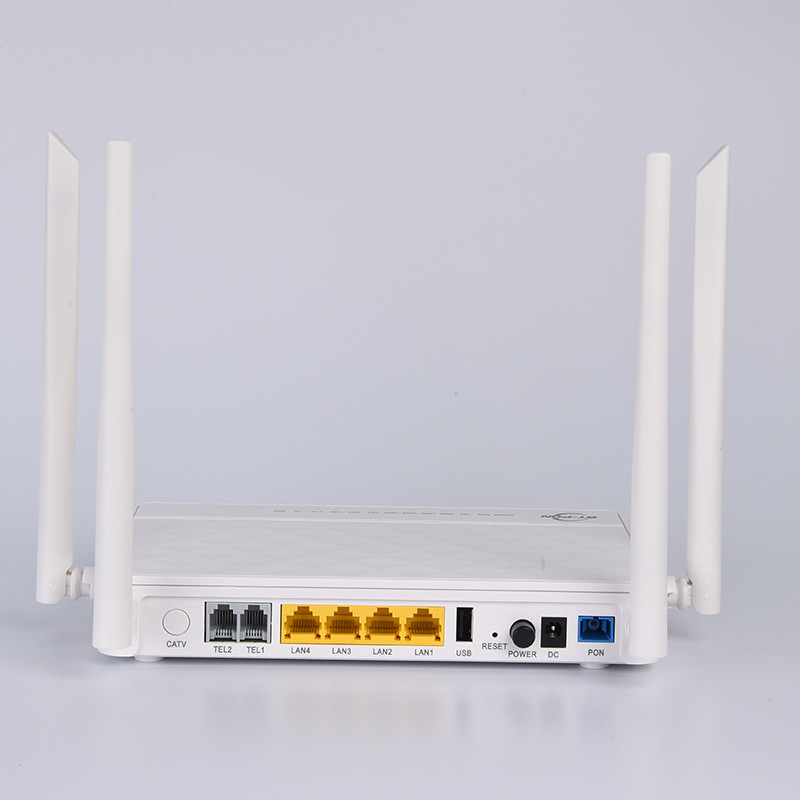

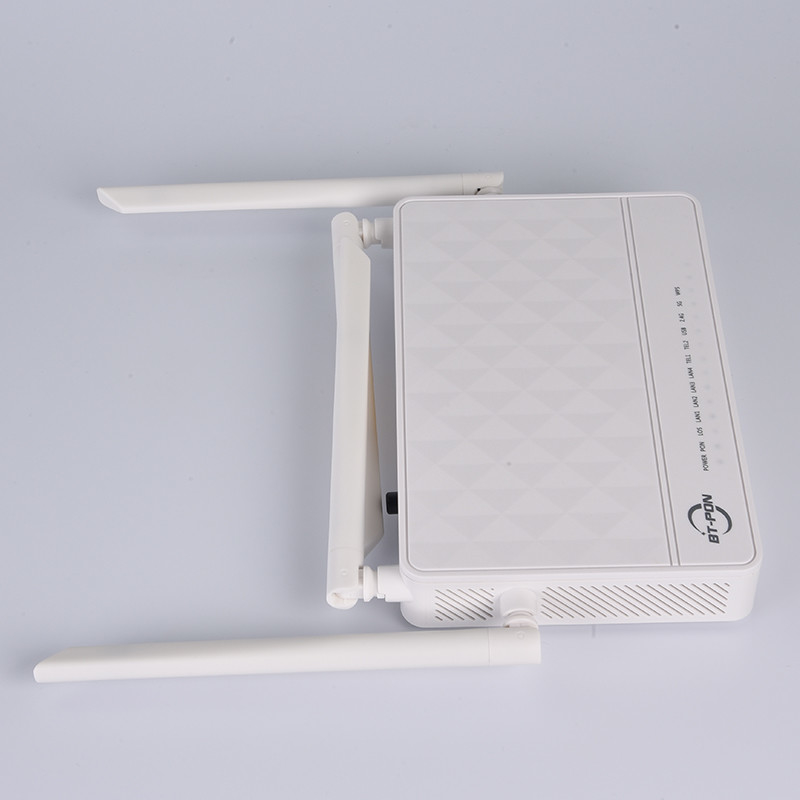

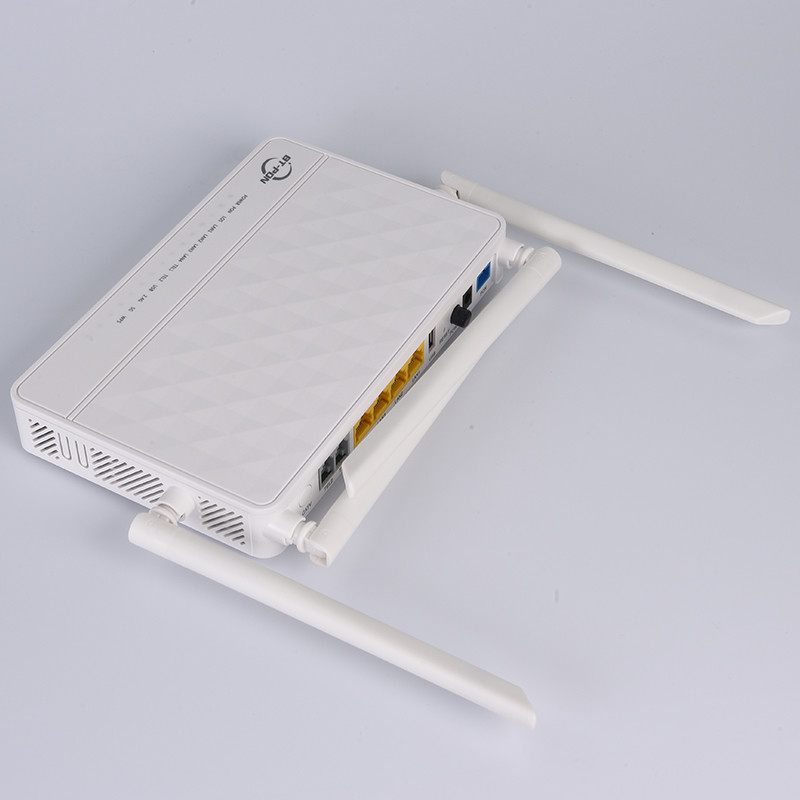

Dual Band Wi-Fi 2GE+2FE+2VOIP PPPoE DHCP Staic IP Optical Network Unit BT-765XR
BT-765XR model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.BT-765XR is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.
GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
GPON:8 T-CONTs,32 GEM Ports
Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
Bi-directional FEC
Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
Qos supports PQ, WRR, and CAR queue scheduling
Provide Maximum rate 300Mbps 2.4GHz Wireless interface, and Maximum rate 866Mbps 5.8GHz
Wireless interface, 2T2R external antenna, support multiple SSID Settings
Support DDSN, ALG, DMZ and UPNP
Provide POTS interface, support SIP protocol,POTS integrated circuit test complies GR-909
Support 802.11ac 2x2, Wave-2 compliant with MU-MIMO.
1. Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2. How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3. Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4. How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5. How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6. What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
