|Type:||FTTx Solutions||Place Of Origin:||China|
|Typical Splice Loss:||SM:0.02dB MM:0.01dB||Return Loss:||>60dB|
|Splicing Program:||40 Groups||Operate Mode:||Manual,Automatic|
|Typical Splice Time:||6 Seconds||Tube Heating Time:||20 Seconds|

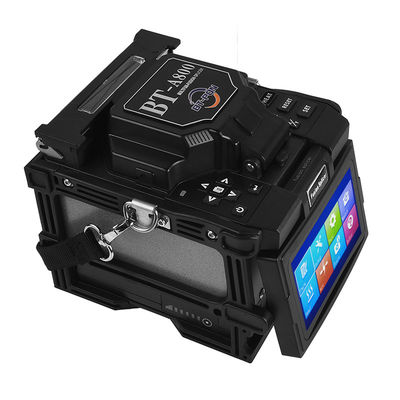

Dual heater Cable Splicing Machine,
Fiber Optic Cable Splicing Machine,
4 Motor Cable Splicing Machine
Fiber Optical Welding Splicing Machine Fusionadora Optica de 4 Motores Soudeuse Fibre Optique Fusion Splicer
FTTH Dual heater Fusion Splicer, with high performance price ratio, is the main product for under promotion with smart appearance, reliable quality, dual heater splicer is a special design for the installation, operation and maintenance of optical fiber specially designe a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.
|Splicing Type||SM, MM, DS, NZDS|
|Splicing Mode||Manual, Half Auto, Auto|
|Fiber Alignment||Core to Core Alignment by PAS technology|
|Applicable Fiber||Cable indoor and 0.25mm,0.9mm fiber, SC connector(option)|
|Fiber Image/ Magnification||300/200|
|View Display||5 inch digital high-quality LCD screen|
|Tension Test||Standard 2N (option)|
|Heat Shrinkable Sleeve||60mm, 40mm and serials heat Shrinkable Sleeve|
200 cycles splicing and heating, 3 hours charging time
( splicing and charging at same time)
|Battery Life||Cycling charge 300-500 times, easy to replace battery|
|Electrodes Life||3000, easy to replace electrodes|
|Interface||USB Convenient data download and software update|
Built in high brightness, wide range of lights, easy to operate at
Built in lithium battery 5200mAh 11.1V; external adapter, input: A
C100-240V, output: DC13.5V/4.5A
0-5000m above sea level, Temperature: -10-60℃,
Humidity:0~95%RH (No dew)
|Weight (including battery)||2.1 KG (including battery)|
1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
