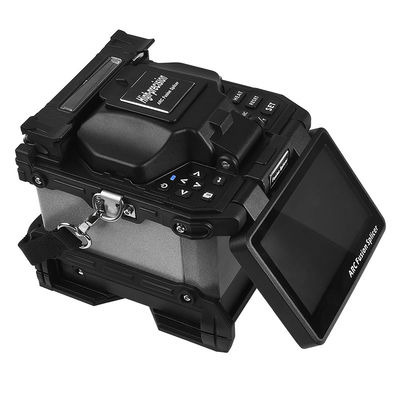

230 Times Splicing Signal Fire Ftth Fiber Fusion Splicer

Basic Information
Place of Origin: Guangdong
Brand Name: BT-PON
Certification: CE
Model Number: Testers &Tools
Minimum Order Quantity: 5
Price: Negotiation
Supply Ability: 10000 Unit/Units per Month
Type: FTTx Solutions Splicing Program: 40 Groups
Return Loss: >60dB Typical Splice Loss: SM:0.02dB MM:0.01dB
Place Of Origin: China Operate Mode: Manual,Automatic
Typical Splice Time: 6 Seconds Tube Heating Time: 20 Seconds
High Light:

FTTH Fusion Splicer Machine

,

Ftth Fiber Fusion Splicer

,

230 Times Fiber Fusion Splicer

FAST SPLICING 6 LANGUAGES 230 TIMES SPLICING HIGH CAPACITY BATTERY SIGNAL FIRE FTTH FUSION SPLICER MACHINE



Product Description:

New multi-functional fixture design, which can weld various optical fibers without replacing the fixture Fully automatic, manual,and semi-automatic functions are optional to improve engineering efficiency. Innovative shockproof shell design, shockproof and drop resistant.

Optical fiber fusion splicer is use for optical fiber cable maintenance and relative operations. Thus it’s also called fiber cable splicer. It’s a device that uses high precision propulsion structure to push two fibers to get closer to each other and uses an electric arc to melt two optical fibers together at their end faces, to form a single long fiber.

Optical fiber fusion splicers are mainly applied by: Telecom carriers,ISP,network project contractors,laboratories. And they’re applied in: Fiber cable network maintenance, telecom projects, emergent repairing, optical experiments, manufacture and testing og optical devices, academic researches in collages.



Features:



Product Parameter:



Model Fusion Splicer
Splicing Type SM, MM, DS, NZDS
Splicing Loss 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Return Loss >60dB
Splicing Mode Manual, Half Auto, Auto
Fiber Alignment Core to Core Alignment by PAS technology
Applicable Fiber Cable indoor and 0.25mm,0.9mm fiber, SC connector(option)
Splicing Time ≤9s
Heat Time ≤30s
Cleaved Length 8~16mm
Fiber Image/ Magnification 300/200
View Display 5 inch digital high-quality LCD screen
Tension Test Standard 2N (option)
Heat Shrinkable Sleeve 60mm, 40mm and serials heat Shrinkable Sleeve



Battery Capacity

200 cycles splicing and heating, 3 hours charging time

( splicing and charging at same time)

Battery Life Cycling charge 300-500 times, easy to replace battery
Electrodes Life 3000, easy to replace electrodes
Power Source ≤20W
Interface USB Convenient data download and software update



Construction Lighting

Built in high brightness, wide range of lights, easy to operate at

night



Power supply

Built in lithium battery 5200mAh 11.1V; external adapter, input: A

C100-240V, output: DC13.5V/4.5A



Operating Condition

0-5000m above sea level, Temperature: -10-60,

Humidity:0~95%RH (No dew)

Weight (including battery) 2.1 KG (including battery)
Dimension (LxWxH) 135mm(L)×158mm(W)×155mm(H)





FAQ:

1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.

230 Times Splicing Signal Fire Ftth Fiber Fusion Splicer 0230 Times Splicing Signal Fire Ftth Fiber Fusion Splicer 1230 Times Splicing Signal Fire Ftth Fiber Fusion Splicer 2
