Type: | FTTx Solutions | Place Of Origin: | China |
---|---|---|---|
Color: | Black | Wavelength: | 1310nm |
Dimension: | 95mm * 70mm * 25mm | Material: | Metal |
Power Supply: | DC 5V 1~2A | Data Rate: | Self-adaptive 10/100/1000Mbps |
High Light: | 1000Mbps Fiber Optic Media Converter,100Mbps Fiber Optic Media Converter,10Mbps Self Adaptive Media Converter |
SFP MEDIA CONVERTER 10/100/1000 BASE MEDIA CONVERTER FIBER OPTIC MEDIA CONVERTER 10/100/1000

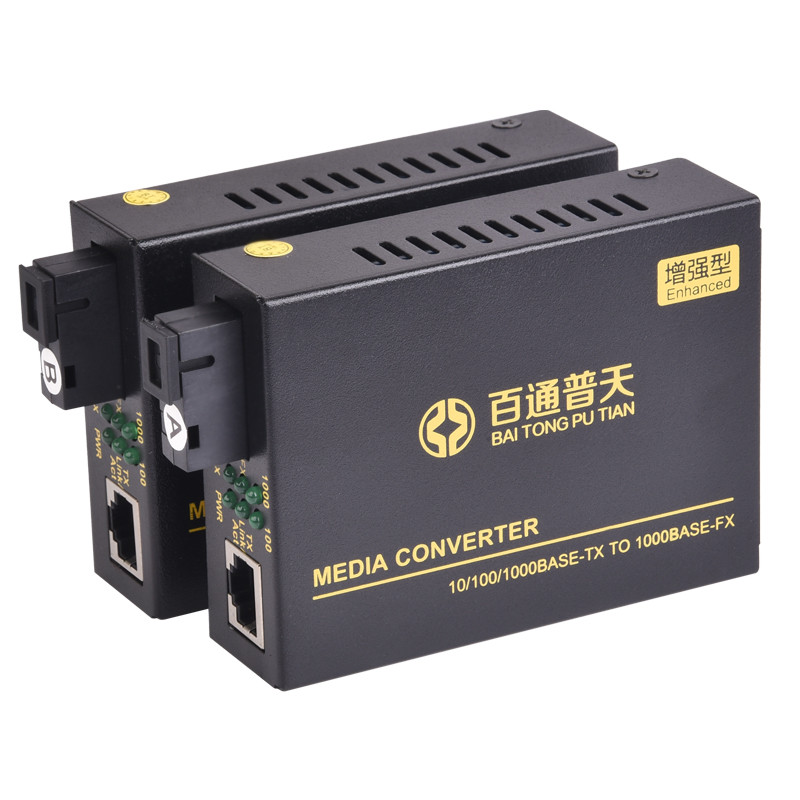

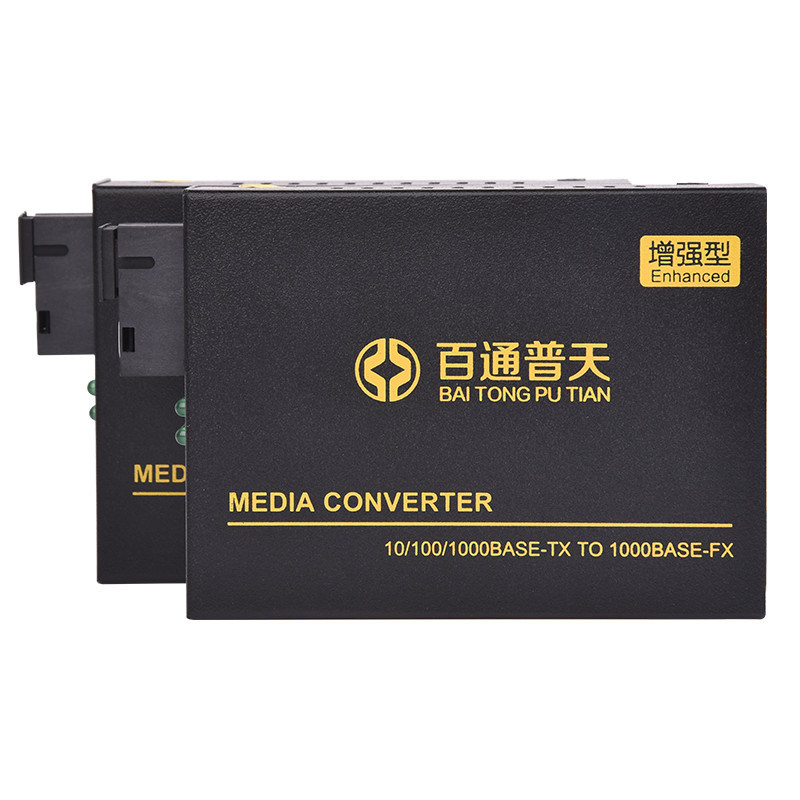

10/100/1000M adaptive fast Ethernet optical Sfp Media Converter is a new product used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100/1000Base-TX to 1000Base-FX network segments, meeting long-distance, high-speed and high-broadband fast Ethernet workgroup users’ needs, achieving high-speed remote interconnection for up to 100 km's relay-free computer data network. With steady and reliable performance, design in accordance with Ethernet standard , it is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.
0/100/1000M Dual fiber | |||||
Connector type | SC | SC | SC | SC | SC |
Fiber type | Multi-mode | Single-mode | Single-mode | Single-mode | Single-mode |
Wavelength | 850nm | 1310nm | 1310nm | 1550nm | 1550nm |
Max Distance | 62.5µm: 224m | 20Km | 40Km | 60Km | 80Km |
50µm: 550m | |||||
Min TX PWR | -11.0dBm | -9.0dBm | -4.0dBm | -8.0dBm | -3.0dBm |
Max TX PWR | -6.0dBm | -5.0dBm | 0dBm | 0dBm | 0dBm |
Sensitivity | < -18dBm | < -21dBm | < -24dBm | < -25dBm | < -25dBm |
Link Budget | 7.0dBm | 12.0dBm | 20.0dBm | 17.0dBm | 22.0dBm |
1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
