|Management Ports:||Provide 10/100Base-T RJ45 Out-band Network Management Port||Interface:||Supply 8 PON Port|
|Data Exchange:||3 Layer Ethernet Switching, Switching Capacity 128Gbps, To Ensure Non-blocking Switching||Pon:||EPON|
|Type:||FTTx Solutions||Dimension:||300.0mm(L)* 440.0mm(W)* 44.45mm(H)|
FTTX 4 PORT EPON OLT,
1G 4 PORT EPON OLT,
FTTH 8 PORT EPON OLT
EPON OLT 4 PORT COMPATIBLE WITH HUAWEI ZTE CISCO SFP SWITCH 8 PORT 1G 10G FTTX FTTH OLT

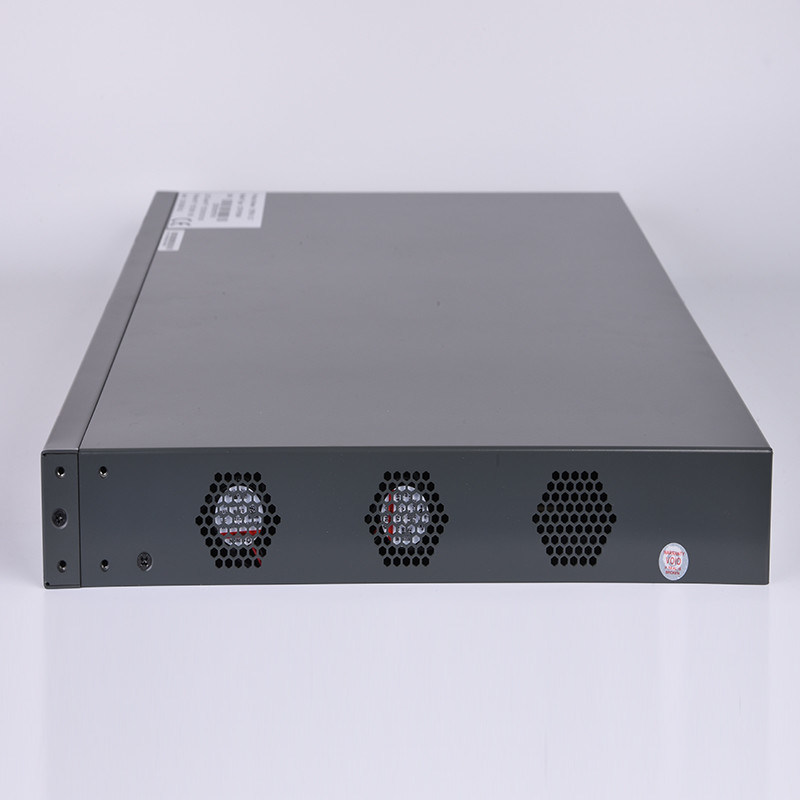

BT-P6108H is designed for chassis OLT device which provides 8downlink 1000M PON ports, 4 uplink GE Combo ports,2 uplink 10GE port by GL-COM. The height is only 1U for easy installation and space saving. Each PON supports up to 128 terminals, the whole device supports up to 1024/2048 ONUs under full configuration. BT-P6108H adopts advanced technology to support SLA and DBA to keep strong function on the Ethernet and QoS features.
Supply 8 PON Port
|4SFP 10GE slots for Uplink|
|10/100/1000M auto-negotiable,RJ45:8pcs for Uplink|
|Management Ports||Provide 10/100Base-T RJ45 out-band network management port|
It can manage the in-band network through any GE uplink port
Provide local configuration port
|Provide 1 CONSOLE port|
|Data exchange||3 layer Ethernet switching, switching capacity 128Gbps, to ensure non-blocking switching|
|LED Light||RUN,PW instructions system running,power working status|
|PON1 to PON8 instructions 8 pcs PON port LINK and Active status|
|GE1 to GE8 instructions 8 pcs GE uplink’s LINK and Active status|
|XGE1 to XGE4 instructions 4 pcs 10GE uplink’s Link and Active status|
|Power Supply||220VAC AC: 100V~240V,50/60Hz DC:-36V~-72V|
|Power Consumption 50W|
|Dimension||300.0mm(L)* 440.0mm(W)* 44.45mm(H)|
|EPON Standard||Comply with IEEE802.3ah,YD/T 1475-200 and CTC 2.0 ,2.1 and 3.0 standard|
Dynamic bandwidth allocation
|Support fixed bandwidth, guaranteed bandwidth, maximum bandwidth, priority, etc. SLA parameters;|
|Bandwidth granularity 64Kbps|
|Security Features||Support PON line AES and triple churing encryption;|
|Support ONU MAC address binding and filtering;|
|VLAN||Support 4095 VLAN additions, transparent transmission, conversion and deletion;|
|Support 4096 VLAN additions, transparent transmission, conversion and deletion;|
|Support VLAN Stacking (QinQ)|
|MAC address learning||Support 32K MAC addresses;|
|Hardware-based wire-speed MAC address learning;|
|Based on port, VLAN, link aggregation MAC restrictions;|
|Spanning Tree Protocol||Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning Tree Protocol|
|Multicast||Support IGMP Snooping and IGMP Proxy, support CTC controllable multicast;|
|Support IGMP v1/v2 and v3|
|NTP protocol||Support NTP protocol|
|Quality of Service(QoS)||Support 802.1p priority queue scheduling;|
|Support SP, WRR or SP + WRR scheduling algorithm;|
Access Control Lists
|According to the destination IP, source IP, destination MAC, source MAC, destination protocol port number, source protocol port number, SVLAN, DSCP, TOS, Ethernet frame type, IP precedence, IP packets carried protocol type ACL rules set;|
|Support the use of the ACL rules for packet filtering;|
|Support Cos ACL rule using the above settings, IP priority setting, mirroring, speed limit and redirect the application;|
|Flow Control||Support IEEE 802.3x full-duplex flow control;|
|Support port speed;|
|Link Aggregation||Support 8 port aggregation group, each group supports 8 member ports|
|Port Mirroring||Support the port mirroring of uplink interfaces and PON port|
|Log||Support by the alarm log output level shield;|
|Support for logging output to the terminal, files, and log server|
|Alarm||Support four alarm levels (severity, major, minor, and warning);|
|Support 6 alarm types (communication, quality of service, processing error, hardware equipment and the environment);|
|Support alarm output to the terminal, log and SNMP network management server|
|Performance Statistics||Performance statistics sampling time 1 ~ 30s;|
|Support the 15 minutes performance statistics of uplink interfaces ,PON port and ONU user port|
|Administration maintenance||Support OLT configuration save, support restore the factory settings;|
|Support OLT online upgrade;|
|support ONU offline service configuration and automatically configure ;|
|Support ONU remote upgrade and batch upgrade;|
|Network management||Support local or remote CLI management configuration;|
|Support SNMP v1/v2c network management, support band, in-band network management;|
|Support the standard of broadcasting industry "EPON + EOC" SNMP MIB and support auto-discovery protocol EoC headend (BCMP);|
|Support WEB config mamagement|
|Open interfaces for third-party network management;|
1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
