| Place of Origin: | Guangdong |
|---|---|
| Brand Name: | BT-PON |
| Certification: | CE |
| Model Number: | Fiber Optic Cable |
| Minimum Order Quantity: | 10km |
| Price: | Negotiation |
| Supply Ability: | 10000 Unit/Units per Month |
| Place Of Origin: | China | Type: | FTTx Solutions |
|---|---|---|---|
| Application: | Fiber Fusion Splicer | No. Of Fiber: | 1.2.4.8.12.24 |
| Fiber Type: | Single Mode Or Multimode | Jacket Color: | Black /customize Accept |
| Length: | 2000m Per Roll Or Customized | Jacket Material: | PVC Or PE |
| High Light: | 6 Core Fiber Optic Cable,Single Mode Fiber Optic Cable,Direct Buried Fiber Cable |
||

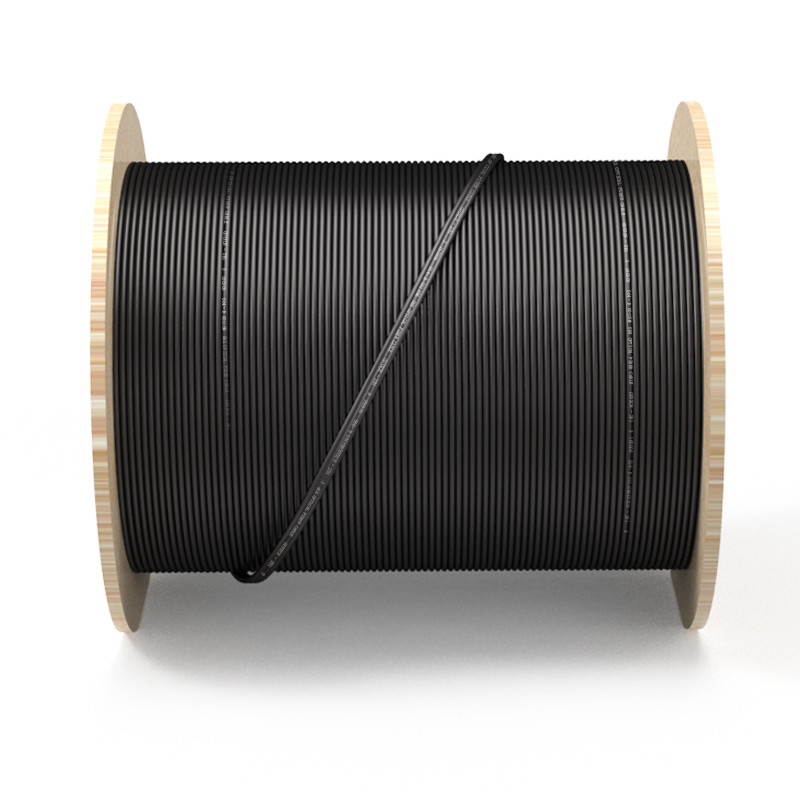

OUTDOOR FIBER OPTIC CABLE DIRECT BURIED 6 CORE SINGLE MODE CABLE OPTIC FIBER
The structure of GYTS is to sheath 250um optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the cable core is a metal reinforced core. For some fiber optic cables, a layer of polyethylene needs to be squeezed outside the metal reinforced core. The loose tube and the filling rope are twisted around the central reinforcing core to form a compact and circular cable core, and the gaps in the cable core are filled with water blocking fillers. T
| Cable Performance Parameter | |||
| Span meter | 200 | 300 | 400 |
| Related Strength Tension(RTS) | 17.5 kn | 20.6 kn | 28 kn |
| Max Allowable Tension(MAT) | 6.9 kn | 8.2 kn | 11.5 kn |
| Allowable Crush Resistance | Long Term: 1100 n/100mm | Long Term: 1100 n/100mm | Long Term: 1100 n/100mm |
| Short Term: 2200 n/100mm | Short Term: 2200 n/100mm | Short Term: 2200 n/100mm | |
| Minimum Bending Radius | Operating: 220 mm | Operating: 220 mm | Operating: 220 mm |
| Installlation: 360 mm | Installlation: 360 mm | Installlation: 360 mm | |
| Temperature Range | Operating: -40 /+70℃ | Operating: -40 /+70℃ | Operating: -40 / +70℃ |
| Installlation: -15 / +60℃ | Installlation: -15 / +60℃ | Installlation: -15 / +60℃ | |
| Out Sheath Material | Electrical Resistance AT (Borealis material 6081) Sheath | ||
| Note | ice accretion 5MM,weed speed:30M/S | ||
Fiber Parameter
|
No. |
Items |
Unit |
Specification |
|
|
G.652D |
||||
|
1 |
Mode Field Diameter |
1310nm |
μm |
9.2±0.4 |
|
1550nm |
μm |
10.4±0.5 |
||
|
2 |
Cladding Diameter |
μm |
124.8±0.7 |
|
|
3 |
Cladding Non-Circularity |
% |
≤0.7 |
|
|
4 |
Core-Cladding Concentricity Error |
μm |
≤0.5 |
|
|
5 |
Coating Diameter |
μm |
245±5 |
|
|
6 |
Coating Non-Circularity |
% |
≤6.0 |
|
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
|
|
8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
|
|
9 |
Attenuation (max.) |
1310nm |
dB/km |
≤0.36 |
|
1550nm |
dB/km |
≤0.24 |
||
