||Power Adapter Input:
||100~240 V AC, 50/60 Hz
||11~14 V DC, 1.5 A
||FTTH FTTB FTTX Network
4GE Dual Band XPON ONU,
FTTH Dual Band ONU,
AC WIFI Dual Band ONU

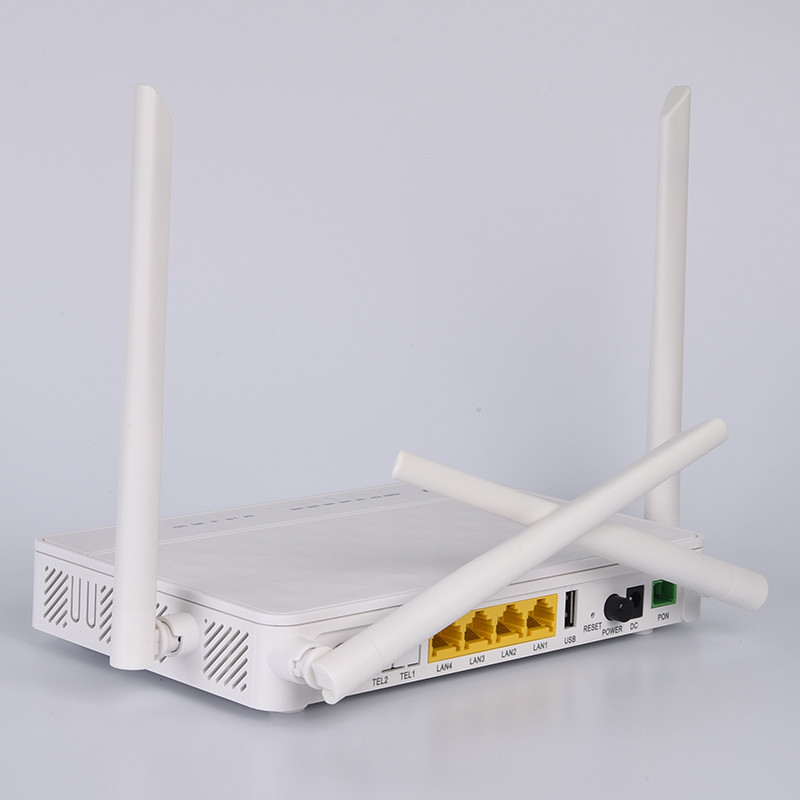

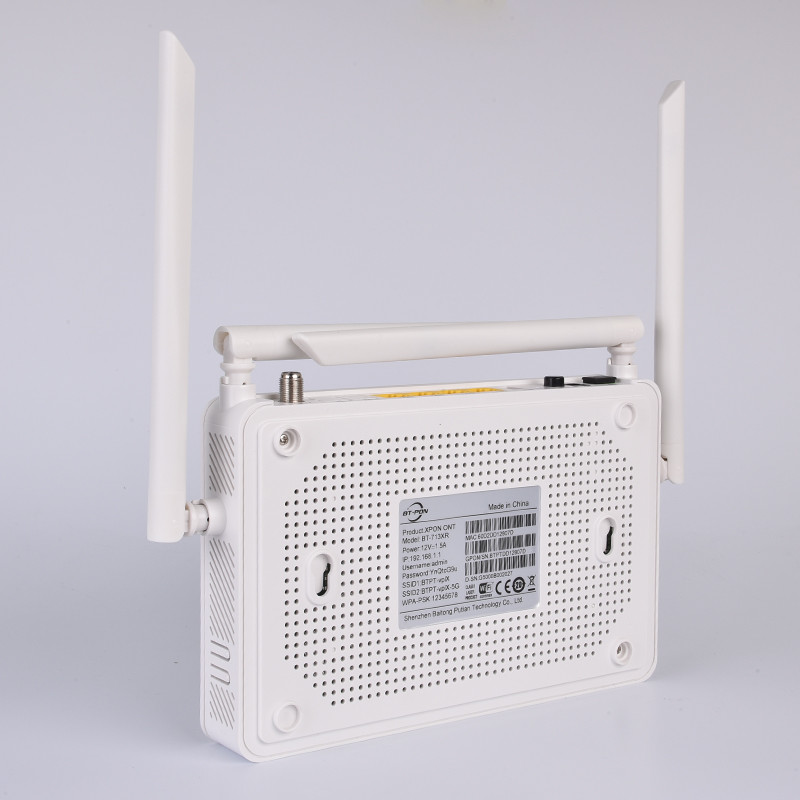

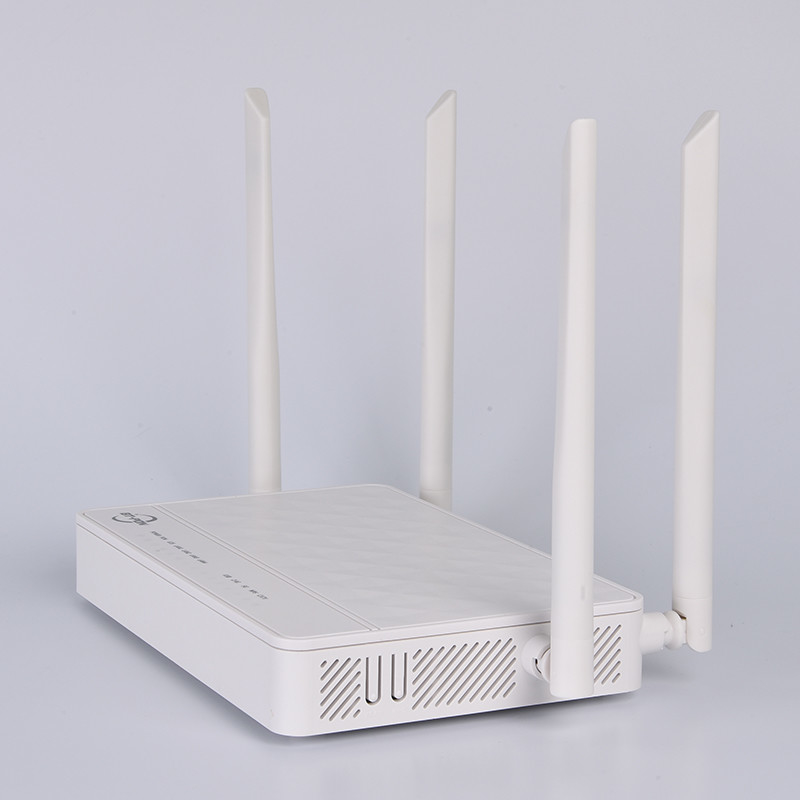

4GE+ACWIFI+CATV ETHERNET FTTH MODEM WIFI ONT XPON WITH FIRMWARE
BT-713XR model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance,BT-713XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X.
- Qos supports PQ, WRR, and CAR queue scheduling
- Provide Maximum rate 300Mbps 2.4GHz Wireless interface,and Maximum rate 866Mbps 5.8GHz Wireless interface,,2T2R external antenna, Support multiple SSID Settings
- Support DDSN, ALG, DMZ and UPNP
- Support CATV interface for Video Service,support to turn off CATV functionality
- Support EPON/GPON mode and switch mode automatically
- GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
- GPON:8 T-CONTs,32 GEM Ports
- Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
- Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
- Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
- Support PPPoE/ Static IP/ DHCP
- Bi-directional FEC
- Support IPv4, IPv6 and IPv4/IPv6
- Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
- Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
|Size(L*W*H)||205mm (L) *140mm (W) *30mm (H)|
|Optical signal access||1*GPON/EPON|
|User interface||2GE+2FE+VOIP+2.4G/5G WIFI+CATV|
|Button||Power switch Button, Reset Button, WLAN Button, WPS Button|
|Power adapter input||100V～240V AC,50Hz～60Hz|
|PowerSupply requirement||12V DC,1.5A|
|Working temperature||-10°C ~ +45°C|
|Environment humidity||5% ~ 95% (Non-condensing)|
|Working wavelength||PON:up 1310nm,down 1490nm ；CATV:1550nm|
|TX Optical power value||0.5～4dBm|
|RX Optical power value||Receiver sensitivity:-27dBm|
GPON:Up 1.244Gbps；down 2.488Gbps
EPON:Up 1.244Gbps；down 1.244Gbps
|Interface parameters||4*10/100/1000Mbps auto adaptive Ethernet interfaces|
|Working mode||IEEE 802.11 b/g/n/ac|
|Antenna pattern||External 2*2T2R External antenna|
|Wireless bandwidth||Support 20MHz/40MHz/80MHz|
2.4G WLAN:Maximum rate 300Mbps
5.8G WLAN:Maximum rate 866Mbps
|SSID||Up to 4 SSID broadcasts are supported|
|Interface type||1* RJ11|
|Integrated circuit protocol||Gr-909 protocol is applicable|
|Optical receiving wavelength||1550±10nm|
|Optical reflection loss||≥45dBm|
|RF, WDM, optical power||+2~-15dBm|
|RF frequency range||47~1000MHz, RF output impedance: 75Ω|
|RF output level||78dBuV|
