||FTTH FTTB FTTX Network
||11~14 V DC, 1.5 A
||Power Adapter Input:
||100~240 V AC, 50/60 Hz
XPON Dual Band ONU,
5ghz Dual Band ONU,
FTTB Dual Band Router

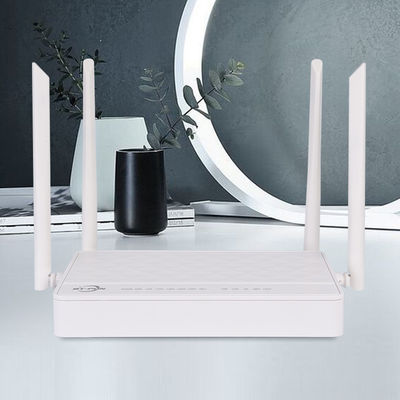

5ghz XPON Dual Band ONU Router Use For FTTH FTTB FTTX Network
FTTH 5ghz Dual Band Router 4 Onu Dual Band Router
Dual Band ONU Description:
BT-716XR is realtek chipset Mini GPON Routing ONU modem designed for fulfilling FTTH ultra-broadband access request of home and SOHO users. IT suports NAT/firewall and the technology of 802.11n WiFi (2T2R) so on functions.
It complies with the energy-saving requirements of ITU-T G.9841/2/3/4 and G987.3. G984 standard PLOAM, embedded OAM and OMCI processing, support L2/L3 multicast forwarding, L2 bridging, L3 routing and NAPT business processing functions; support IPv4 and IPv6 dual stack and DS-Lite, 6RD functions; support rich and flexible Stream classification function; Support HQoS (Hiberarchy Quality of Service) to achieve hierarchical QoS.
- Provide POTS interface, support SIP protocol,POTS integrated circuit test complies GR-909
- Support CATV interface for Video Service,support to turn off CATV functionality
- Support PPPoE/ Static IP/ DHCP
- Bi-directional FEC
- Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
- Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
- Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
- Support DDSN, ALG, DMZ and UPNP
- Support IPv4, IPv6 and IPv4/IPv6
- Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
- Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
- Qos supports PQ, WRR, and CAR queue scheduling
- Provide Maximum rate 300Mbps 2.4GHz Wireless interface,and Maximum rate 866Mbps 5.8GHz Wireless interface,,2T2R external antenna, support multiple SSID Settings
- Support EPON/GPON mode and switch mode automatically
- GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
- GPON:8 T-CONTs,32 GEM Ports
||205mm (L) *140mm (W) *30mm (H)
|Optical signal access
||Power switch Button, Reset Button, WLAN Button, WPS Button
|Power adapter input
||-10°C ~ +45°C
||5% ~ 95% (Non-condensing)
||PON:up 1310nm,down 1490nm ；CATV:1550nm
|TX Optical power value
|RX Optical power value
GPON:Up 1.244Gbps；down 2.488Gbps
EPON:Up 1.244Gbps；down 1.244Gbps
||4*10/100/1000Mbps auto adaptive Ethernet interfaces
||IEEE 802.11 b/g/n/ac
||External 2*2T2R External antenna
2.4G WLAN:Maximum rate 300Mbps
5.8G WLAN:Maximum rate 866Mbps
||Up to 4 SSID broadcasts are supported
|Integrated circuit protocol
||Gr-909 protocol is applicable
|Optical receiving wavelength
|Optical reflection loss
|RF, WDM, optical power
|RF frequency range
||47~1000MHz, RF output impedance: 75Ω
|RF output level
