|Power Adapter Input:
||100~240 V AC, 50/60 Hz
||11~14 V DC, 1.5 A
||205mm (L) *140mm (W) *30mm (H)
GPON Dual Band ONU,
FTTH Dual Band ONU,
Dual Band GPON ONT

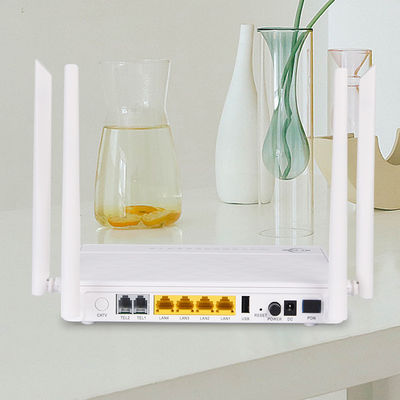

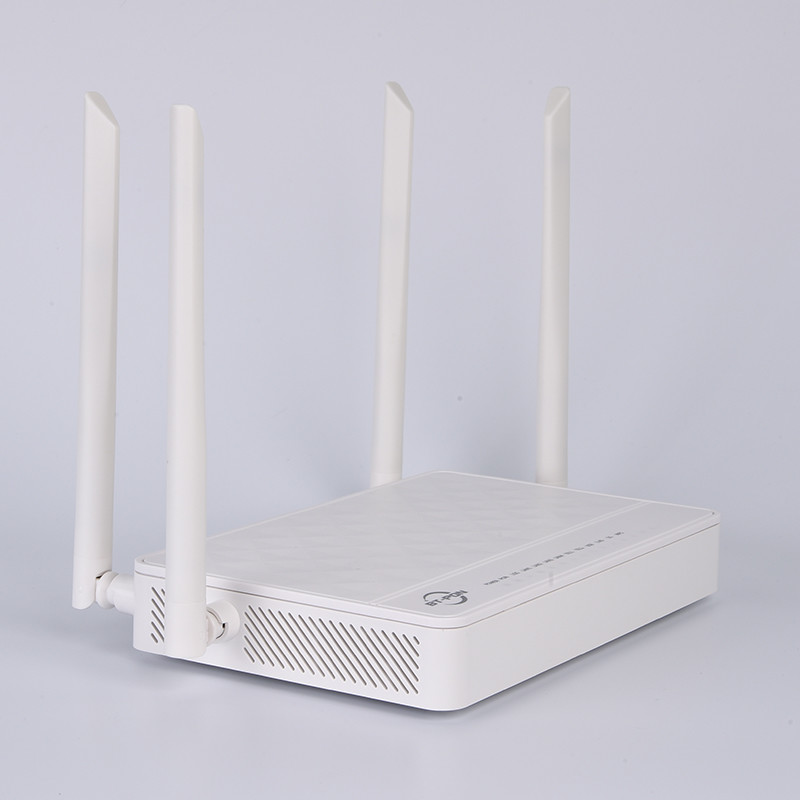

4GE FTTO USB WIFI GPON Dual Band ONU Ftth Home Modem FTTx Solutions
Ftth Home Modem 4GE FTTO USB WIFI GPON Dual Band ONU
PON is a mature optical fiber access network technology, which integrates the advantages of low cost, high bandwidth, strong expansibility and other advantages. It adopts the passive spectral network and point-to-multipoint structure, which changes the problems existing in the active optical network such as many fault points, difficult maintenance and high operating costs.
BT-765XR model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance.
- Bi-directional FEC
- Support IPv4, IPv6 and IPv4/IPv6
- Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
- Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
- Qos supports PQ, WRR, and CAR queue scheduling
- Provide Maximum rate 300Mbps 2.4GHz Wireless interface,and Maximum rate 866Mbps 5.8GHz Wireless interface,,2T2R external antenna, support multiple SSID Settings
- Support DDSN, ALG, DMZ and UPNP
- Provide POTS interface, support SIP protocol,POTS integrated circuit test complies GR-909
- Support EPON/GPON mode and switch mode automatically
- GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
- GPON:8 T-CONTs,32 GEM Ports
- Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
- Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
- Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
- Support PPPoE/ Static IP/ DHCP
||205mm (L) *140mm (W) *30mm (H)
|Optical signal access
||Power switch Button, Reset Button, WLAN Button, WPS Button
|Power adapter input
||-10°C ~ +45°C
||5% ~ 95% (Non-condensing)
||PON:up 1310nm,down 1490nm
|TX Optical power value
|RX Optical power value
GPON:Up 1.244Gbps；down 2.488Gbps
EPON:Up 1.244Gbps；down 1.244Gbps
||4*10/100/1000Mbps auto adaptive Ethernet interfaces
||IEEE 802.11 b/g/n/AC
||External 2*2T2R External antenna
2.4G WLAN:Maximum rate 300Mbps
5.8G WLAN:Maximum rate 866Mbps
||Up to 4 SSID broadcasts are supported
|Integrated circuit protocol
||Gr-909 protocol is applicable
