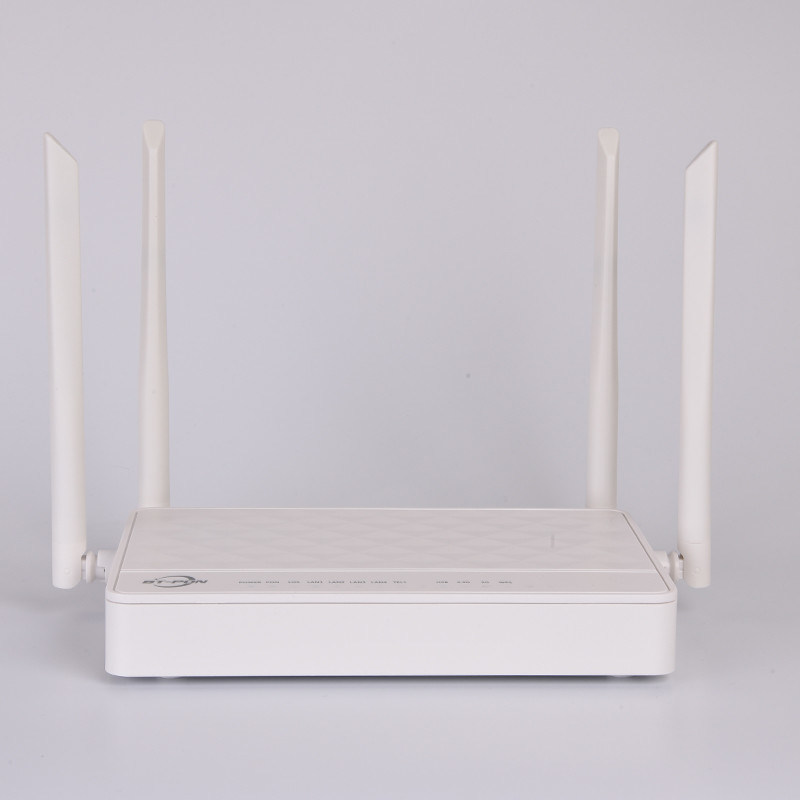

EPON Wifi Dual Band ONU GEPON Device Same Huawei FTTx Solutions

Basic Information
Place of Origin: Guangdong
Brand Name: BT-PON
Certification: CE
Model Number: BT-762XR
Minimum Order Quantity: 100
Price: Negotiation
Supply Ability: 10000 Unit/Units per Month
Ports: 1GE+1FE+1TEL+2.4GWIFI+CATV Package Size: 168mm*130mm*28mm
Power Adapter Input: 100~240 V AC, 50/60 Hz Power Supply: 11~14 V DC, 1.5 A
Gross Weight: 230g Use: FTTH
Type: FTTx Solutions Pon: XPON
Key: Xpon Onu
High Light:

Wifi Dual Band ONU




FTTx Solutions Wifi Onu

EPON Wifi Dual Band ONU GEPON Device Same Huawei FTTx Solutions


GPON ONU Dual Band EPON ONU Wifi Onu GEPON Device


BT-762XR Description:

The BT-762XR model ONU is a terminal developed independently by BTPT to fit such an industrial background. It has two-layer switching and three-layer routing built in. BT-762XR is an XPON device that can be adapted to EPON and GPON networks without replacing equipment. It has a compact design and a small footprint, so it's very suitable for data service applications in FTTH networks..


BT-762XR Features:


BT-762XR Parameter:


Hardware Specifications
Size(L*W*H) 205mm (L) *140mm (W) *30mm (H)
Optical signal access 1*GPON/EPON
User interface 4GE+1VOIP+2.4G/5.8G WLAN+1USB
Indicator light POWER,PON,LOS,LAN1,LAN2,LAN3,LAN4,TEL1,USB,2.4G,5G,WPS
Button Power switch Button, Reset Button, WLAN Button, WPS Button
Weight 300g
Power adapter input 100V~240V AC,50Hz~60Hz
PowerSupply requirement 12V DC,1.5A
Power consumption <10w
Working temperature -10°C ~ +45°C
Environment humidity 5% ~ 95% (Non-condensing)
PON Interface
Module type SC/UPC
Working wavelength PON:up 1310nm,down 1490nm
TX Optical power value 0.5~4dBm
RX Optical power value Receiver sensitivity:-27dBm
Transmission distance 0~20km
Transmission rate

GPON:Up 1.244Gbps;down 2.488Gbps

EPON:Up 1.244Gbps;down 1.244Gbps

Ethernet interface
Interface type 4*RJ45
Interface parameters 4*10/100/1000Mbps auto adaptive Ethernet interfaces
Working mode IEEE 802.11 b/g/n/ac
Antenna pattern External 2*2T2R External antenna
Antenna gain 5dBi
Wireless bandwidth Support 20MHz/40MHz/80MHz
Interface rate

2.4G WLAN:Maximum rate 300Mbps

5.8G WLAN:Maximum rate 866Mbps

SSID Up to 4 SSID broadcasts are supported
POTS interface
Interface type 1* RJ11
Voice agreement SIP
Codecs G.711/G.723/G.726/G.729
Integrated circuit protocol Gr-909 protocol is applicable

EPON Wifi Dual Band ONU GEPON Device Same Huawei FTTx Solutions 0EPON Wifi Dual Band ONU GEPON Device Same Huawei FTTx Solutions 1


Which is better GPON or EPON?

EPON and GPON have their own advantages and disadvantages. GPON is better than EPON from the performance index. However, EPON has the advantage of time and cost. ... GPON will be more suitable for customers with high bandwidth, multi-service, QoS and security requirements and ATM technology as the backbone.



1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7
workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
