|Power Adapter Input:||100~240 V AC, 50/60 Hz||Power Supply:||11~14 V DC, 1.5 A|
GPON Dual Band Ont,
GEPON Dual Band Ont,
FTTx GPON ONU
GPON Dual Band Ont Odn GEPON Device Optical Fiber FTTx Solutions
GPON ONU Dual Band Ont Odn Wifi Onu GEPON Device Optical Fiber

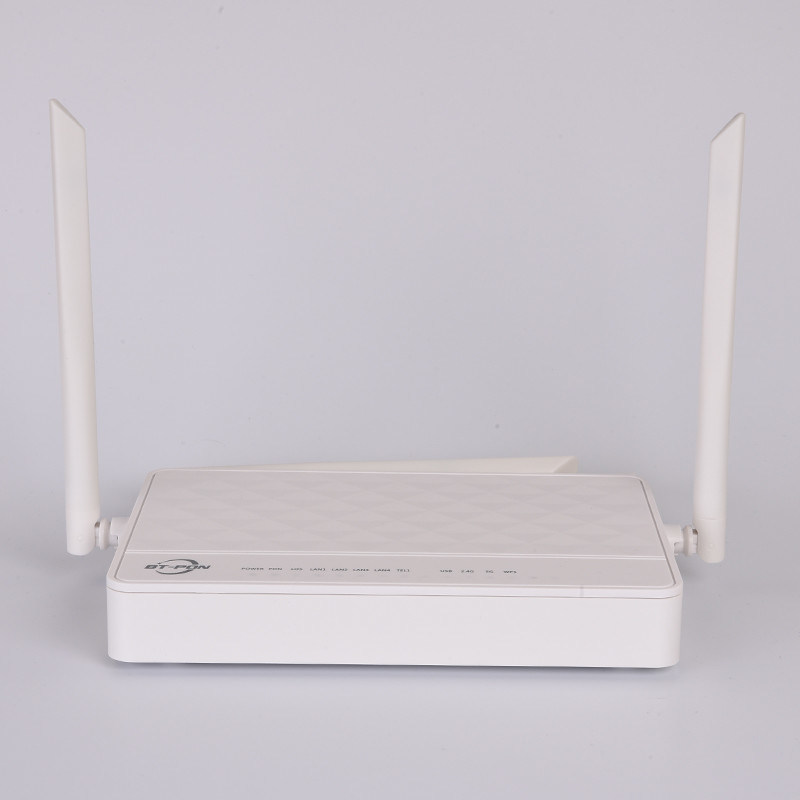

The BT-762XR model ONU is a terminal developed independently by BTPT to fit such an industrial background. It has two-layer switching and three-layer routing built in. BT-762XR is an XPON device that can be adapted to EPON and GPON networks without replacing equipment. It has a compact design and a small footprint, so it's very suitable for data service applications in FTTH networks..
|Size(L*W*H)||205mm (L) *140mm (W) *30mm (H)|
|Optical signal access||1*GPON/EPON|
|User interface||4GE+1VOIP+2.4G/5.8G WLAN+1USB|
|Button||Power switch Button, Reset Button, WLAN Button, WPS Button|
|Power adapter input||100V～240V AC,50Hz～60Hz|
|PowerSupply requirement||12V DC,1.5A|
|Working temperature||-10°C ~ +45°C|
|Environment humidity||5% ~ 95% (Non-condensing)|
|Working wavelength||PON:up 1310nm,down 1490nm|
|TX Optical power value||0.5～4dBm|
|RX Optical power value||Receiver sensitivity:-27dBm|
GPON:Up 1.244Gbps；down 2.488Gbps
EPON:Up 1.244Gbps；down 1.244Gbps
|Interface parameters||4*10/100/1000Mbps auto adaptive Ethernet interfaces|
|Working mode||IEEE 802.11 b/g/n/ac|
|Antenna pattern||External 2*2T2R External antenna|
|Wireless bandwidth||Support 20MHz/40MHz/80MHz|
2.4G WLAN:Maximum rate 300Mbps
5.8G WLAN:Maximum rate 866Mbps
|SSID||Up to 4 SSID broadcasts are supported|
|Interface type||1* RJ11|
|Integrated circuit protocol||Gr-909 protocol is applicable|
With XPON, a new generation of optical fiber access technology, you'll get a lot of advantages like anti-interference, bandwidth, access distance, and maintenance and management. Global operators love it. The XPON optical access technology is pretty mature, while EPON and GPON rely on a central office OLT, user-side ONU equipment, and passive optical distribution network. ODN network and equipment are important for XPON integrated access, involving the creation and deployment of a new optical fiber network. XPON applications are restricted by the cost of ODN equipment and networking.
